Data & Telecommunications

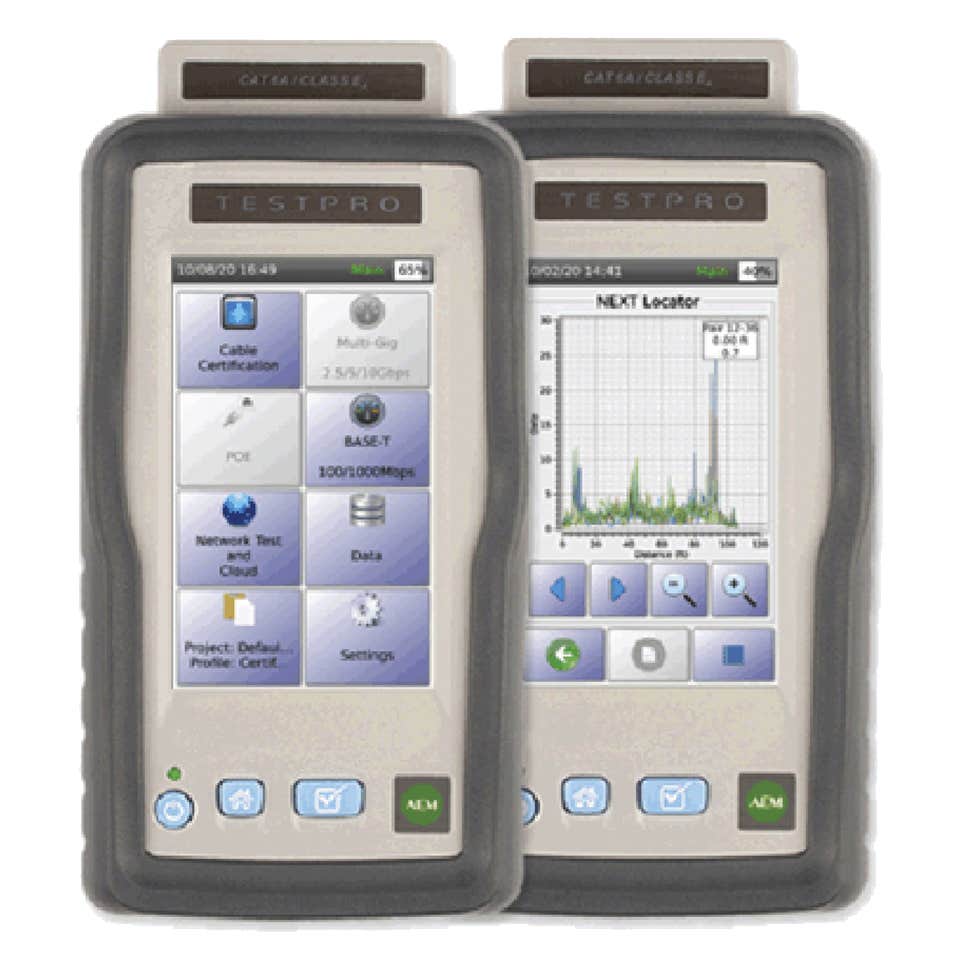

TESTPRO CV100-K50 Copper Cable Certifier

TestPro CV100-K50 supports testing and certification for network deployments up to 40 Gigabit Ethernet for Cat 5e, 6, 6A, 7, 8 or Class I/II cabling system. The electrically centered test plug offers a frequency range of 3000 MHz which exceeds the Cat 8, Class I/II 2000 MHz requirement.

Fitel S179 Core Alignment Fusion Splicer and Cleaver

Fitel S179 hand-held, core-alignment fusion splicer for single and multimode fiber, includes S326 cleaver. Typical 6 sec splice time, 9 sec heating time and losses of 0.02dB and 0.01dB on single and multimode fibre respectively. Features include 4.3-inch LCD touch screen, 3+1 LED lights illuminate entire splicing chamber for improved visibility in low-light and Intentional high attenuation splice function, splice loss of 0.1dB to 15dB(0.1dB step) can be made for an inline fixed attenuator.

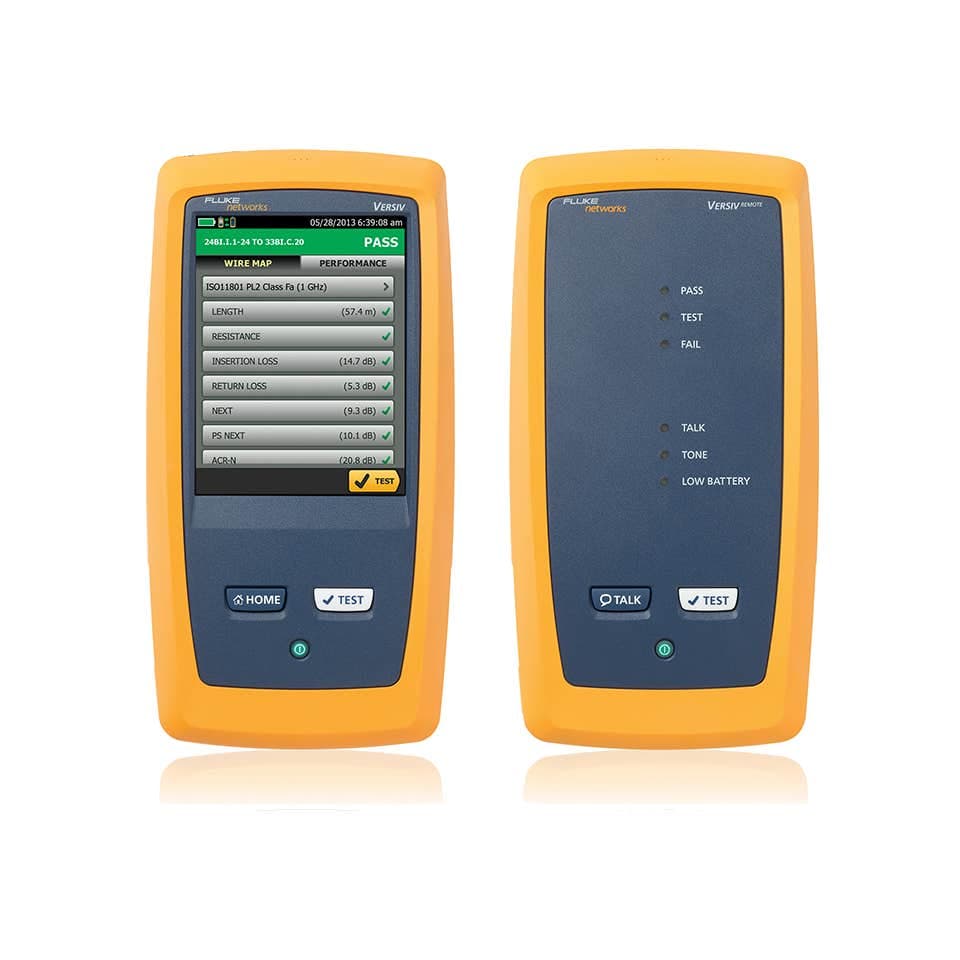

Fluke DSX-5000 Cable Analyser 1GHz Class FA

Fluke DSX-5000 1GHz cable analyser copper test solution enables testing and certification of twisted pair cabling for up to 10 GigE deployments and will certify shielded and unshielded structured cabling systems from Cat 3, to 7A and Class C, to FA at Level V accuracy. 9 second Cat 6 autotest. Built in Alien Crosstalk testing capability. PLA004 (Cat 6A / Class EA), CHA004 (Cat 6A / Class EA) adapters and LinkWare PC reporting software included.

Fluke DSX-8000 Cable Analyser 2GHz Class FA

Fluke DSX-8000 2GHZ cable analyser copper test solution enables testing and certification of twisted pair cabling for up to 40 GigE deployments and will certify shielded and unshielded structured cabling systems for Cat 5E,6,6A, 7A, 8 and Class C I/II, to FA at Level V accuracy. 8 second Cat 6 autotest. Built in Alien Crosstalk testing capability. PLA004 (Cat 6A / Class EA), CHA004 (Cat 6A / Class EA) adapters and LinkWare PC reporting software included.

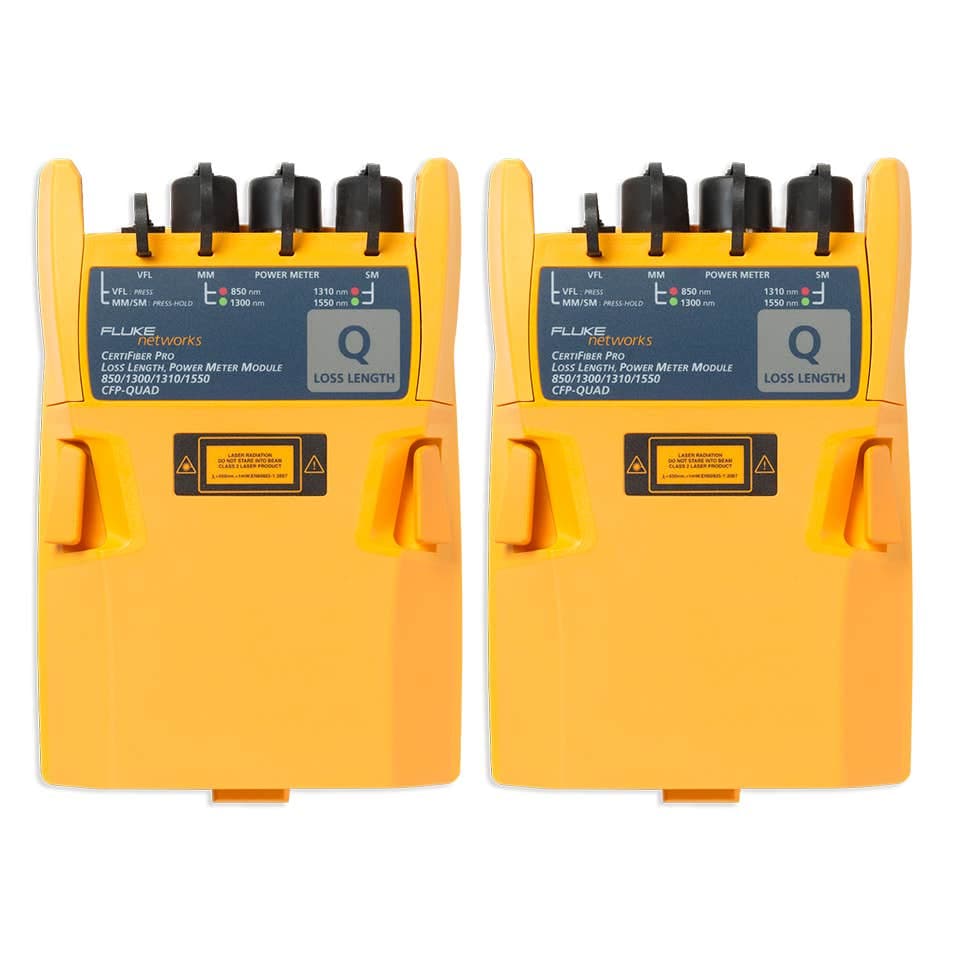

Fluke CertiFiber Pro MM-SM Optical Loss Test Set

Fluke multi and singlemode (CFP-Q-ADD) optical loss test set modules for the Versiv DSX-5000. Provides Tier 1 certification at 850, 1300, 1310 and 1550 nm in 3 seconds (for 2 wavelengths). A set reference wizard ensures correct reference setting. Encircled Flux compliant as required by ANSI/TIA and ISO/IEC. Measures fibre optic attenuation, length, and propagation delay. Includes built in VFL and Linkware software.

Fluke FTK1000 Multimode Fibre Optic Light Source and Meter

Fluke SimpliFiber FTK1000 fibre test kit. Light source is multimode 850nm and 1300nm. Power meter has 850/1300nm multimode and 1310/1550nm single mode. Manage results and print reports via Power meter memory, PC and supplied software.

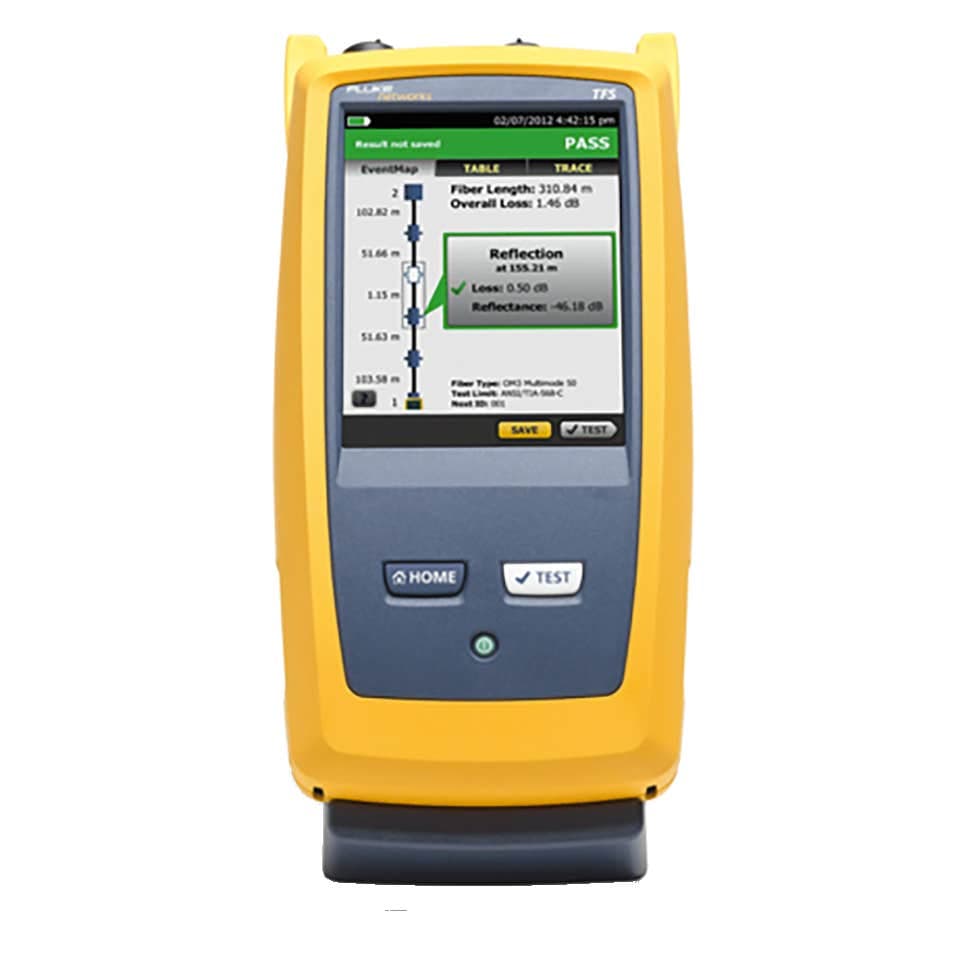

Fluke Optifiber Pro Quad OTDR

Fluke Optifiber Pro Quad multi and singlemode OTDR, wavelengths 850, 1300, 1310 and 1550nm, dynamic range 28, 30, 32 and 30 dB respectively. Designed for testing, troubleshooting and certifying multi and singlemode fibre optic networks. Smartphone user interface, shortest event and attenuation deadzones, LinkWare download and reporting software included.

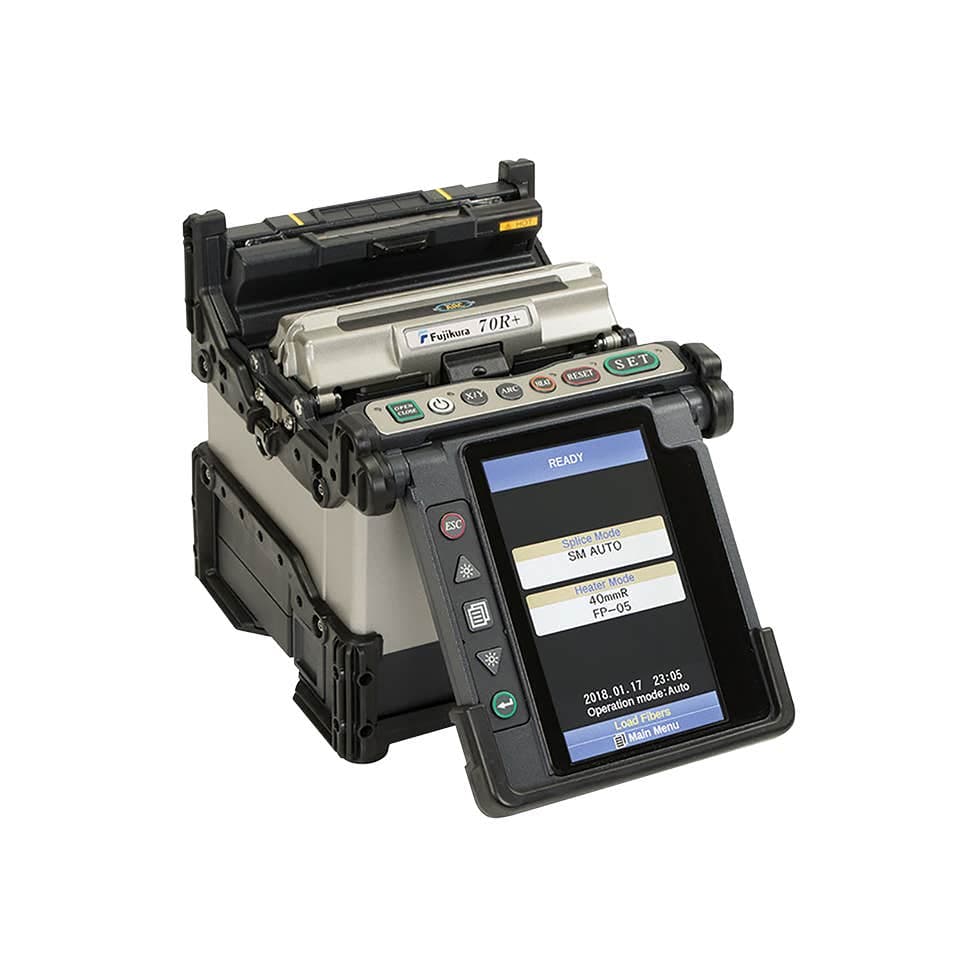

Fujikura FSM70R+ Ribbon Fusion Splicer Kit

Fujikura FSM70R+ ribbon fibre fusion splicer. Typically splice time 11 seconds and sleeve shrink time 29 seconds. Detachable work table and arc-free calibration system. Includes CT-50 cleaver and thermal jacket stripper.

Fujikura FSM70S+ Core Alignment Fusion Splicer and Cleaver

Fujikura FSM70S+ single fibre core alignment fusion splicer and CT50 cleaver. Typical splice losses of 0.02dB and 0.01dB on single and multimode fibre respectively. Automated tension test, wind and heater cover, 6 second Ultra Fast splice time, 14 second heat time and 20,000splicer result storage.

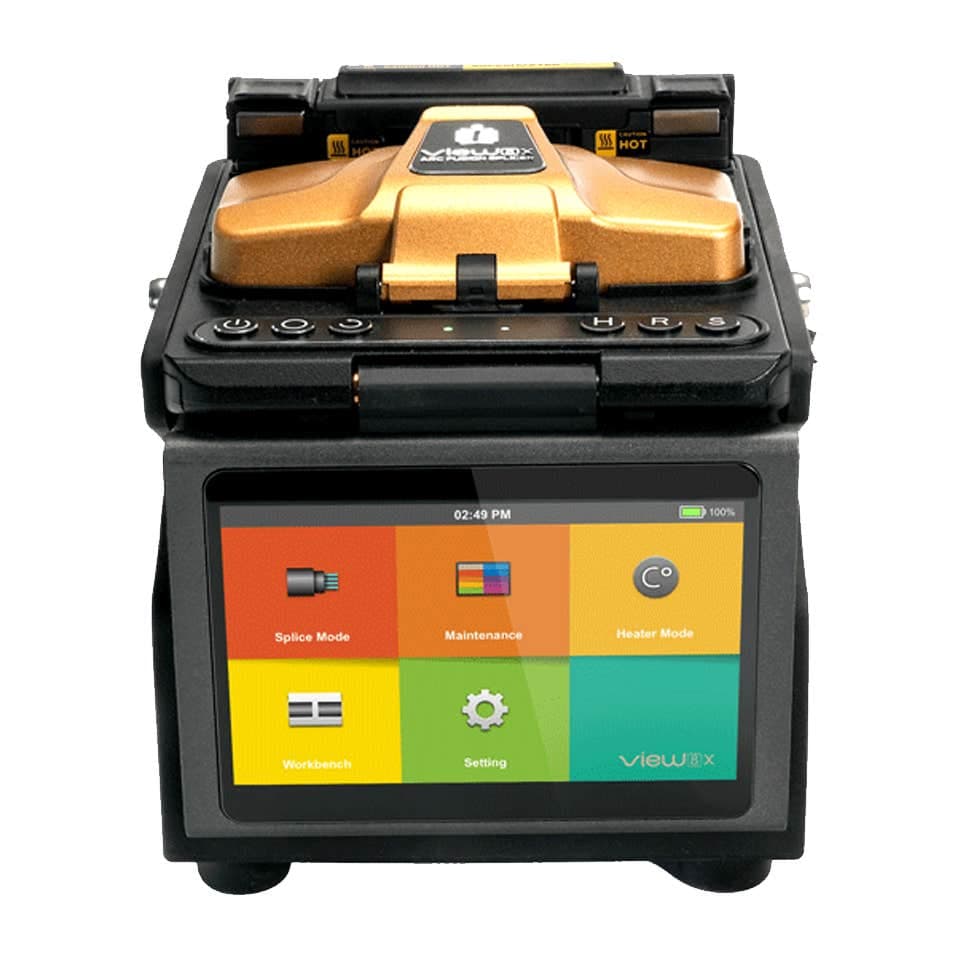

Inno View 8X Core Alignment Fusion Splicer and Cleaver

Inno View 8X single fibre core alignment fusion splicer and V12 cleaver. " 0.01dB typical splice loss SM & MM. " 4 second average quick mode splice time. " 9 second quick heat time. " 20,000 splice data and 10,000 splice image results storage.

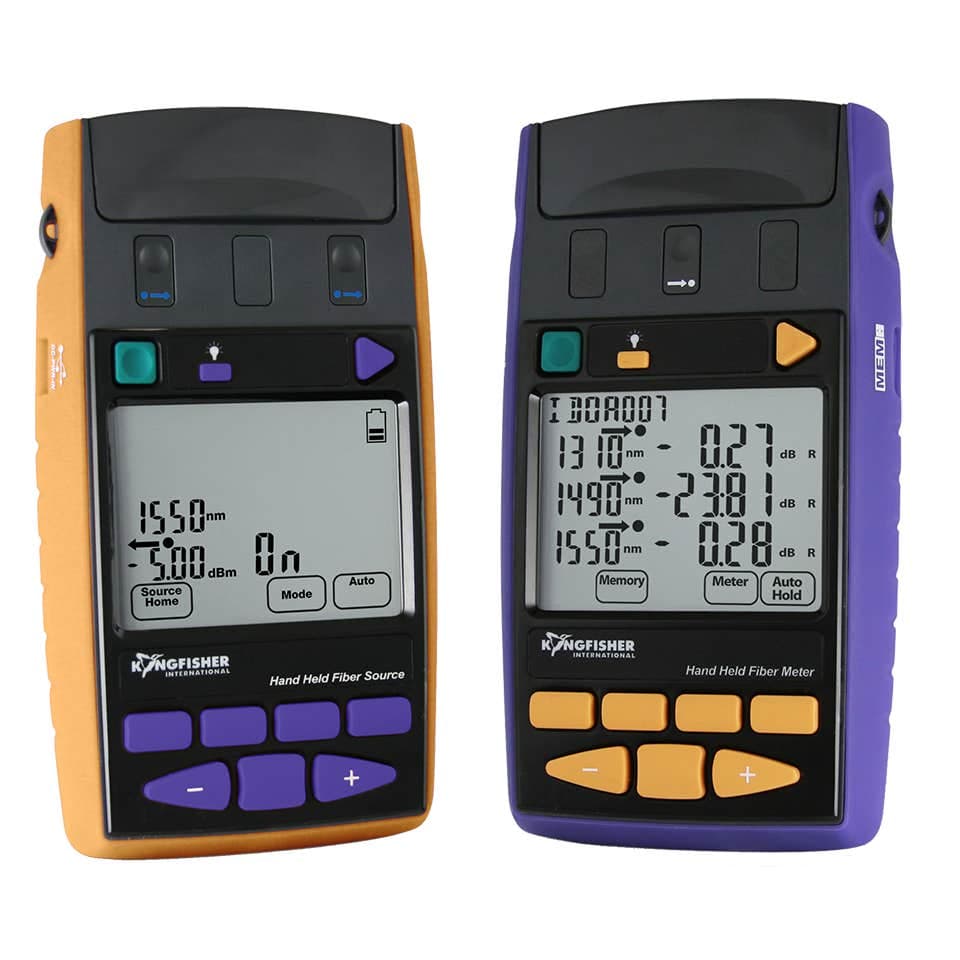

Kingfisher KI-28010 Single Mode APC LS and KI-2600 PM

Kingfisher singlemode light source KI-28010 and power meter KI-2600. Compatible with APC and PC singlemode networks. Wavelengths 1310, 1550 and 1625nm. Memory with text, timestamp and USB dump, real-time PC reporting software. Autotest provides fast, easy and automatic multi wavelength loss testing.

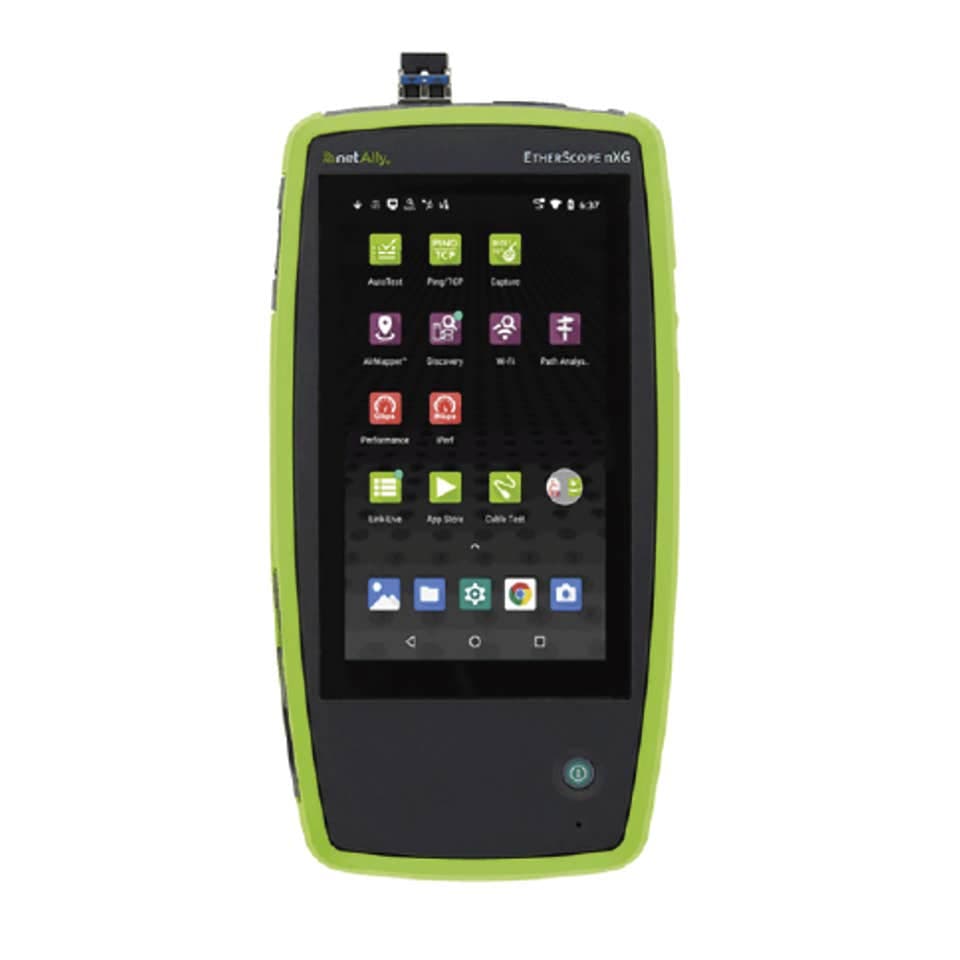

NetAlly Etherscope EXG-300 Network Expert

The EtherScope nXG-300 Portable Network Expert is a multi-technology, all-in-one handheld network analyzer that enables engineers and technicians to deploy, maintain and document Wi-Fi and Ethernet access networks. Supports MultiGig networks from 10/100/1000Mbps to 2.5/5/10G and 802.11a/b/g/n/ac/ax. Also known as, Wi-Fi versions 1, 2, 3, 4, 5, 6/6E.

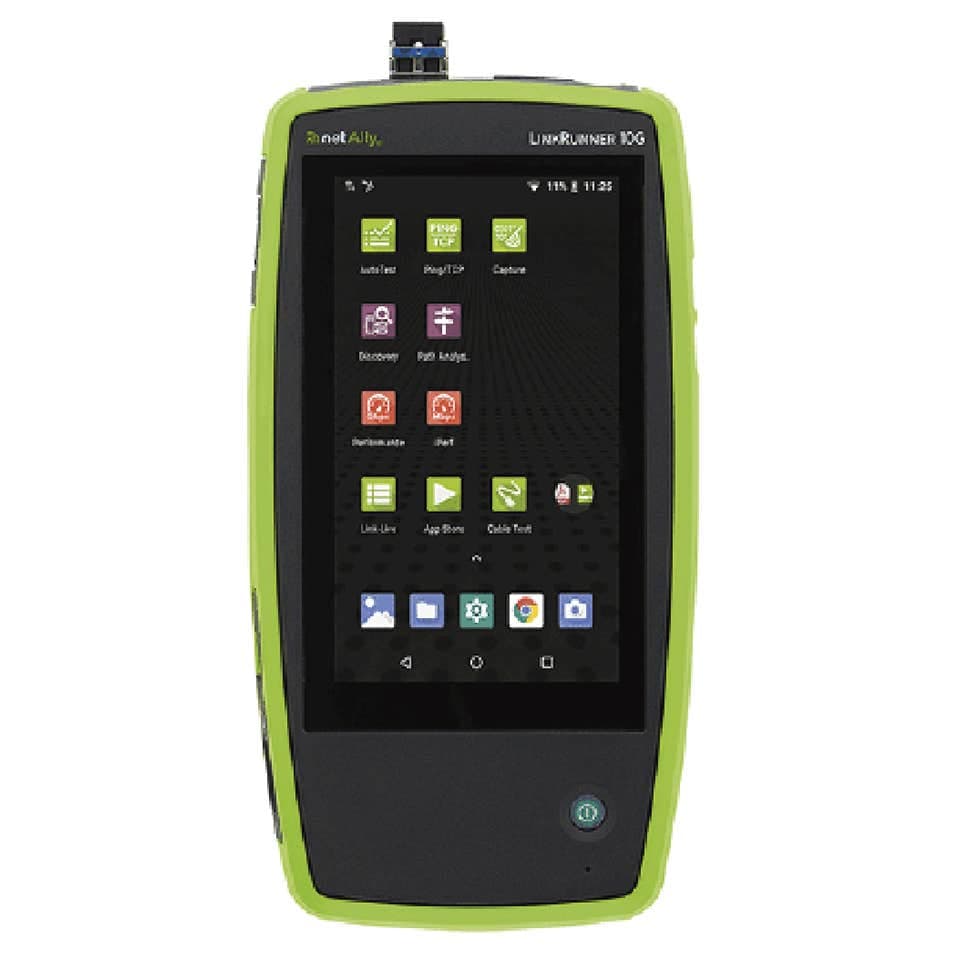

NetAlly LinkRunner 10G Ethernet Tester

LinkRunner 10G simplifies testing and configuration of copper and fiber Ethernet networks, streamlining workflows by combining essential functions of installation, triage, network validation and troubleshooting through layers 1-7. The LR-10G accelerates deployments, speeds up problem identification, and improves the efficiency and effectiveness of network installers and operations teams. Features: • LANBERT, Qualify premise cabling for carrying Multi-Gig and 10Gig Ethernet (requires LR-10G or EXG-300 at end point) • Layer 1-7 AutoTest enables any technician to find network problems • Monitor networks for intermittent issues, every minute for up to 24 hours • Validate up to 90W 802.3bt PSE with TruePower loaded PoE test

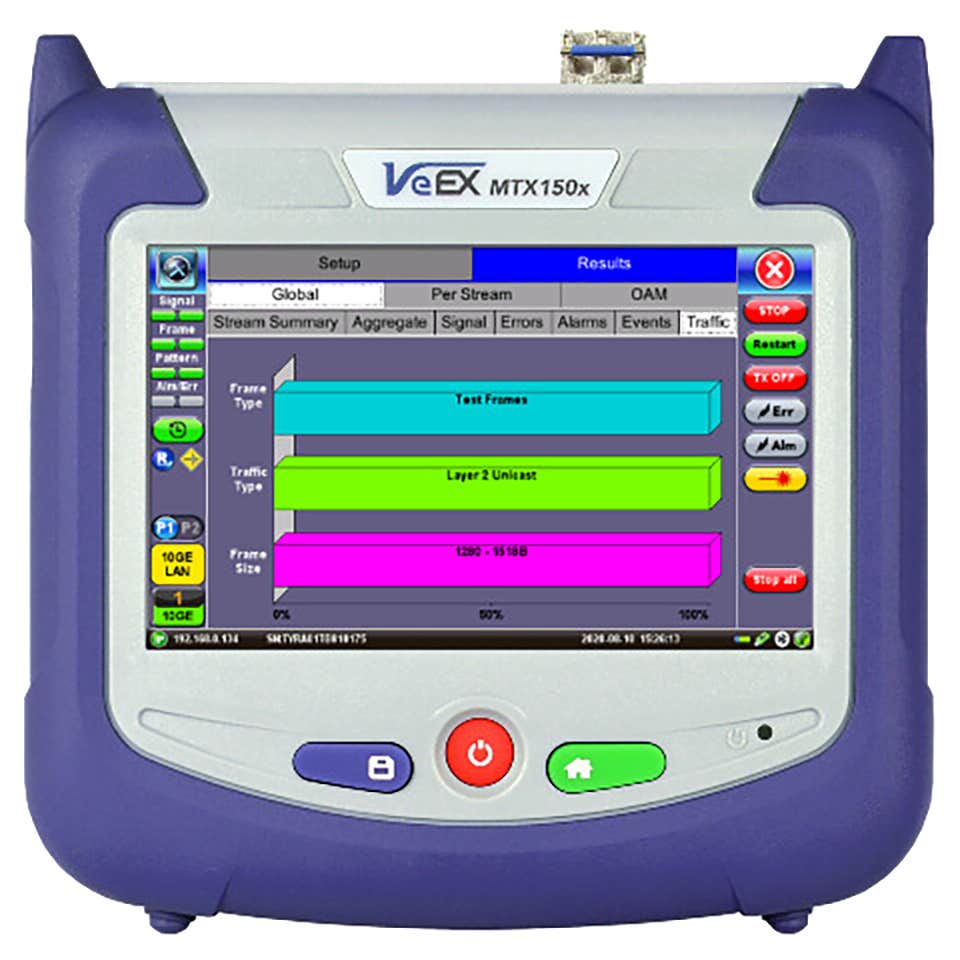

VeEX Ethernet Services Test Set 10G

The MTX150x is a self-contained Ethernet services test solution for Layer 1 to 4. Required by field technicians to install, verify, maintain and troubleshoot Metro Ethernet links, Business services, Internet Access and other packet-base services up to 10 Gbps. Ethernet Testing includes BERT, RFC2544, Throughput, Y.1564, Optical Lane BERT, Loopback, PCS Analysis, Multiple Stream (32), IP Connectivity and IPv6. Ethernet Layer-4+ Testing: V-PERF 1GE/10GE Line Rate TCP Throughput per RFC6349.

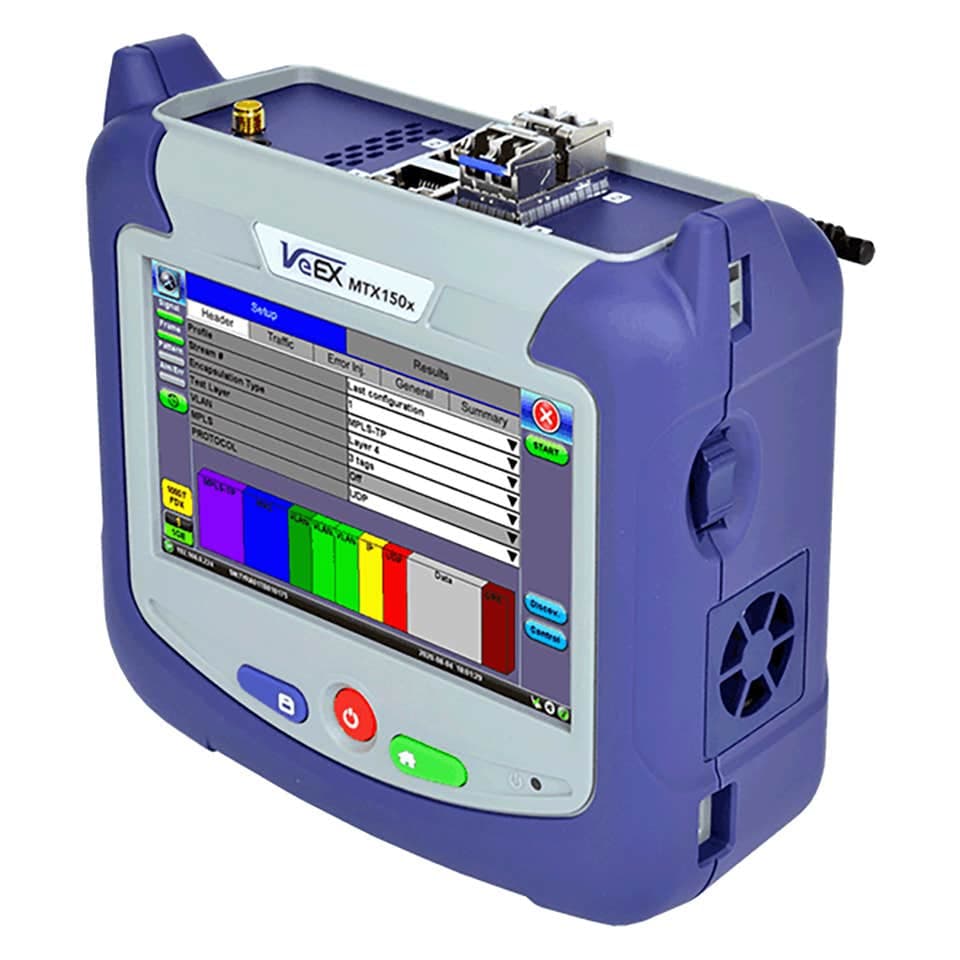

VeEX Ethernet Services Test Set 1G

The MTX150x is an Ethernet services test solution for Layer 1 to 4. Required by field technicians to install, verify, maintain and troubleshoot Metro Ethernet links, Business services, Internet Access and other packet-base services up to 1 Gbps. " Loopback device included " RFC2544 " V-SAM test suite compliant with ITU-T Y.1564 standard " Throughput, BERT, IPv4/IPv6

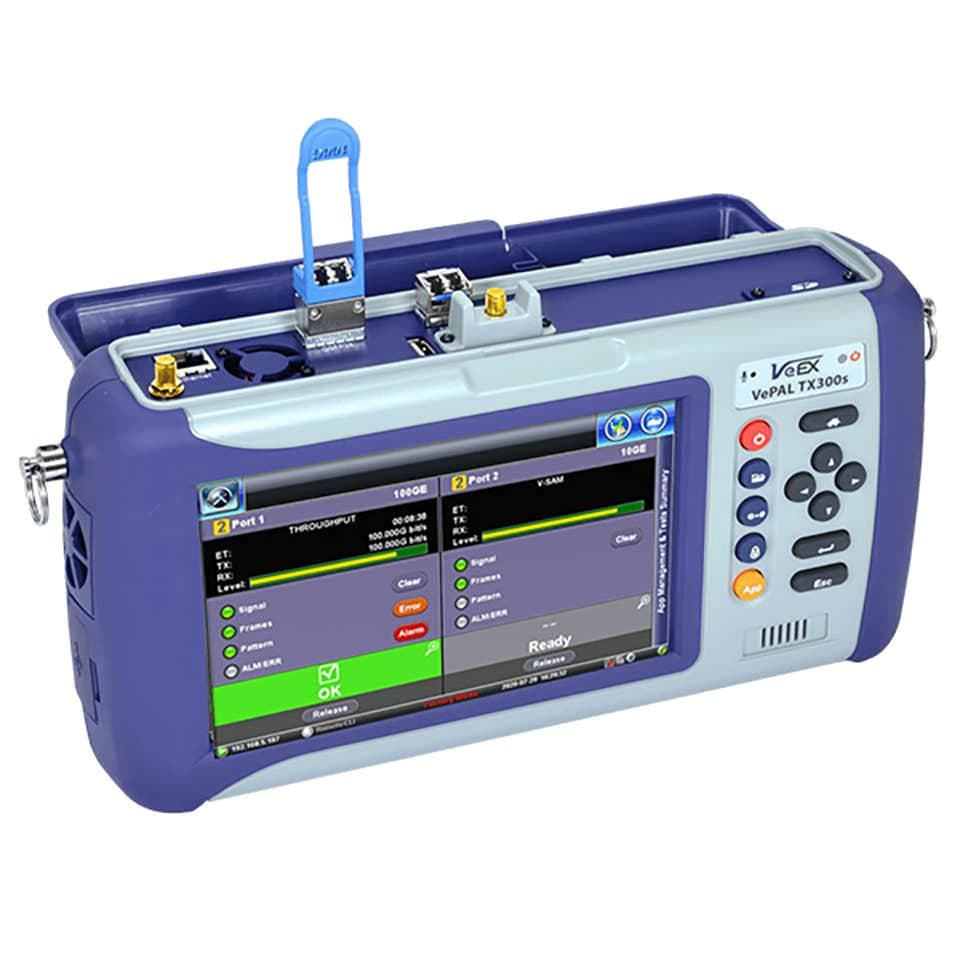

VeEX Ethernet Services Test Set 100G

VeEX TX300 100G Ethernet test set. Fast troubleshooting and comprehensive analysis of transmission problems can be performed using its common graphical user interface. Novice users benefit from the easy-to-use GUI, while experienced users will appreciate an array of advanced features. Applications include installation, commissioning, monitoring and maintenance of Ethernet networks. Features " 100 Gbps Ethernet testing " RFC2544 and V-SAM (Y.1564) testing " IPv4 and IPv6 traffic generation " Fibre Channel " OTN

Viavi MTS-4000 Multi and Singlemode OTDR

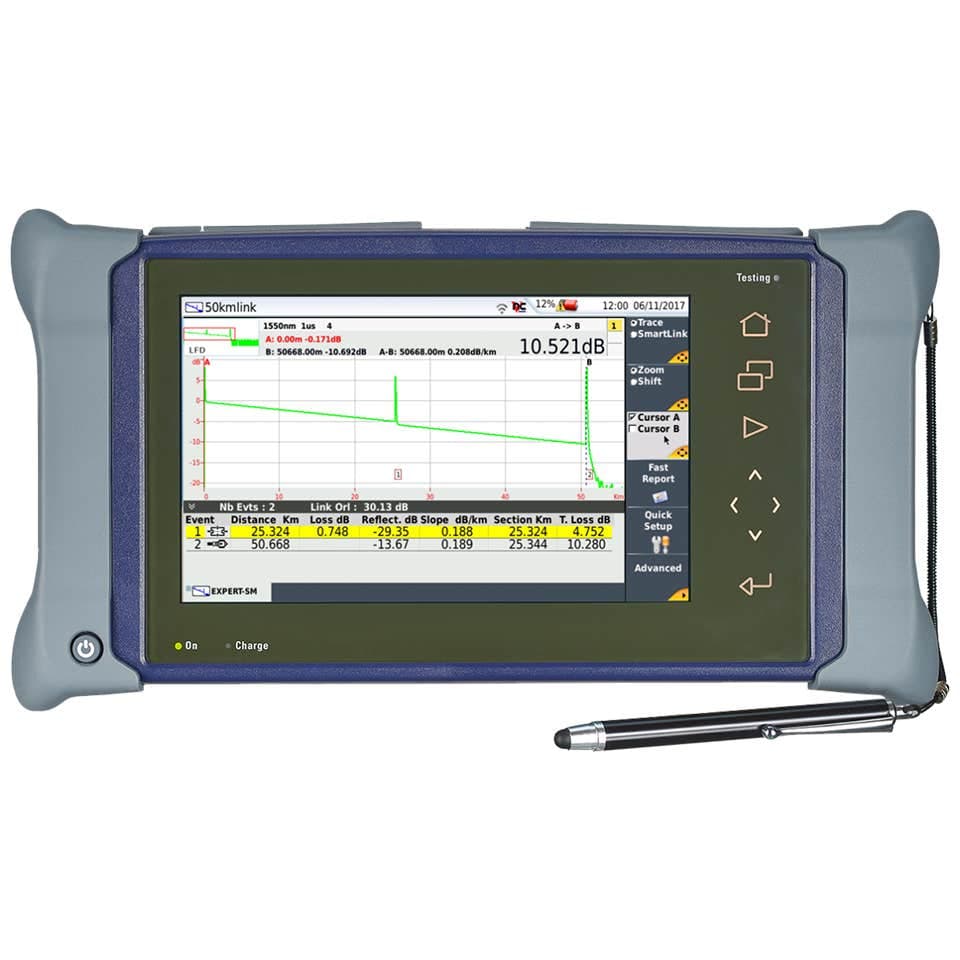

Viavi MTS-4000 Single-Mode OTDR

Viavi Single-mode OTDR 1310/1550/1625nm with a SC/A connector and dynamic ranges 40, 40 and 38 dB respectively. The fibre module is housed in the 9" touch screen MTS-4000 mainframe and is capable of point to point and up to 32x splitter FTTx/PON testing. It features the Smart Link Mapper function which offers the user an easy to follow block diagram as well as the OTDR trace, helping novice and expert Fibre Technicians alike. Supplied with a P5000i VIP and launch lead.
