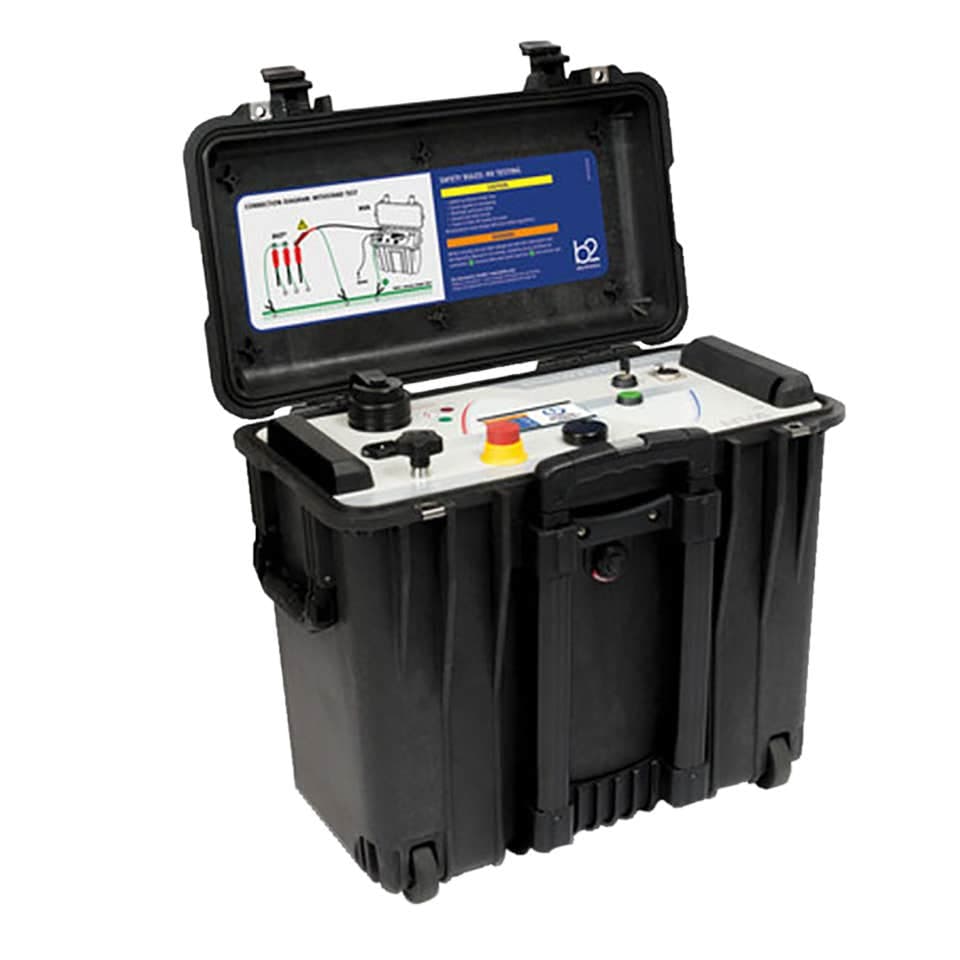

b2 electronics HVA45TD VLF and TD test set
SKU: B2E,HVA45TD
VLF, DC, and TD test capabilities combined in one unit. Meets international test guides (e.g., IEEE 400.2-2013). VLF Sine wave - 0.01Hz to 0.1Hz frequency range, 45KV peak and 32.3KV RMS voltage range. DC - +/-45KV, VLF square wave - 0-45KV and Sheath test - 0-15KV. Manual and automatic test modes available. Supplied with b2 control center software for reporting. Built-in memory: up to 50 reports, 50 test sequences.
Need this equipment?
Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.
Call us: +61 2 9564 8623
The b2 electronics HVA45TD VLF and TD Test Set is a portable high-voltage system designed for very low frequency (VLF) cable withstand tests and precise tan delta (TD) diagnostics, making it an ideal solution for service providers and utilities that need to rent or hire reliable equipment for medium-voltage cable condition assessment.
Combining a 45 kVpeak VLF source with integrated TD measurement, the HVA45TD streamlines commissioning and maintenance tasks by detecting insulation defects before they progress to costly failures. Its compact, solid-state design, intuitive user interface and automatic report generation help technicians complete on-site testing quickly and confidently.
Key Features:
Integrated VLF source: Generates up to 45 kV peak sine-wave output for withstand testing of medium-voltage cables in accordance with IEC standards.
Built-in Tan Delta diagnostics: Accurately measures insulation losses to reveal water-treeing and other degradation mechanisms during the same test sequence.
Automatic test sequences: Pre-programmed routines simplify set-up, minimise operator error and produce repeatable results.
On-board data storage & reporting: Stores test data internally with easy USB export for post-analysis and documentation.
Rugged, portable construction: Solid-state design with IP-rated housing allows safe transport and dependable field performance.
Why Choose the b2 electronics HVA45TD VLF and TD Test Set?
Delivers high-precision cable diagnostics in a single, compact unit.
Reduces downtime through fast, automated test cycles and instant reporting.
Complies with established international standards for VLF testing and TD analysis.
TechRentals provides the b2 electronics HVA45TD VLF and TD Test Set on flexible rental terms, giving you access to premium equipment without the upfront cost of ownership. Backed by over 50 years of industry expertise, we help ensure accurate and efficient medium-voltage cable condition assessments.
Enquire today to rent the b2 electronics HVA45TD VLF and TD Test Set and streamline your cable testing and tan delta diagnostic tasks.
Not sure which equipment to hire? Call our friendly experts today and get the right solution for your project.
