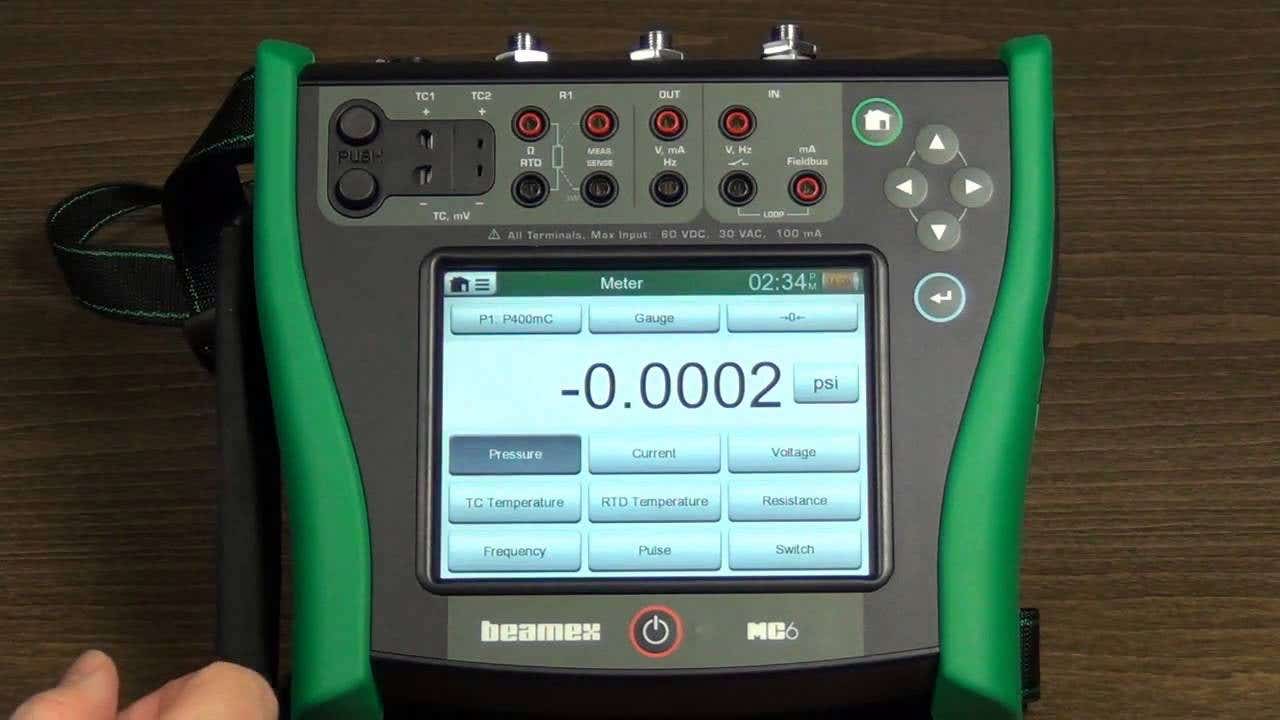

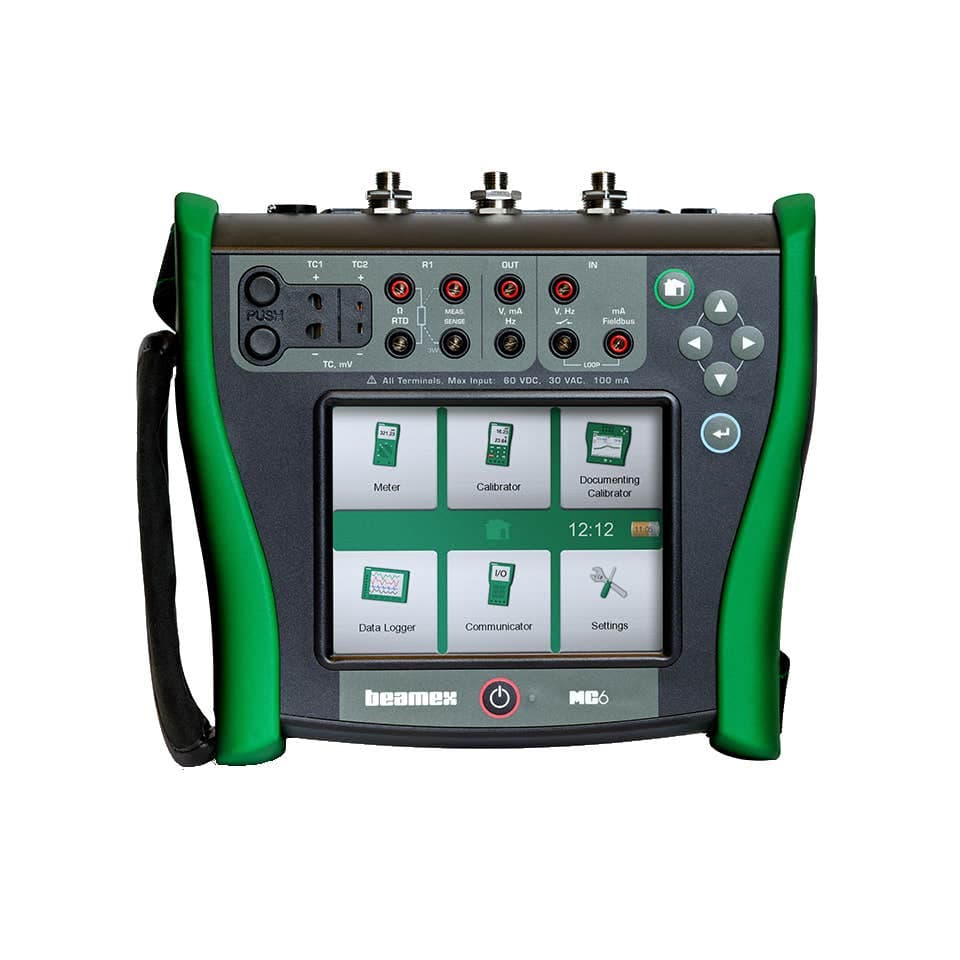

Beamex MC6 Multifunction Calibrator

SKU: BEA,MC6

NATA certified MC6 provides calibration capability for pressure, temperature, electrical and frequency signals with HART communication and Document Calibrator option included. Performs as a field-entry device (FED) allowing for the recording of non-calibration related maintenance results. Pressure modules included, -1 to 20 bar and 600 bar. DC voltage & current, frequency, and pulse measurement. RTD, thermocouple, and resistance simulation & measurement. Pressure accuracy EXT-600 bar 0.007% FS + 0.01% Rdg, INT-20 bar 0.005% FS + 0.01% Rdg, temperature coefficient ±0.001 % Rdg/degC outside 15 to 35 degC. Please enquire about our other MC6 configurations and pressure rangers.

Need this equipment?

Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.

Call us: +61 2 9564 8623

The Beamex MC6 Multifunction Calibrator is a high-accuracy, all-in-one device for calibrating pressure, temperature, and electrical signals. Designed for industrial use, it suits sectors like oil and gas, power generation, and manufacturing. Built with an IP65-rated enclosure and a user-friendly colour touchscreen, the MC6 performs reliably in tough environments.
Key features:
Multifunction capability – Pressure, temperature, and electrical signal calibration in one unit
High accuracy advanced field calibrator and communicator
Rugged design – Durable and IP65-rated for harsh conditions
Intuitive interface – Large colour touchscreen for easy navigation
Data logging – Stores results and generates reports
Advanced connectivity options – Supports HART, FOUNDATION Fieldbus, and Profibus PA
The MC6 is ideal for professionals needing precision, versatility, and ease of use. For specifications or support, please refer to the datasheet or contact our team directly.
