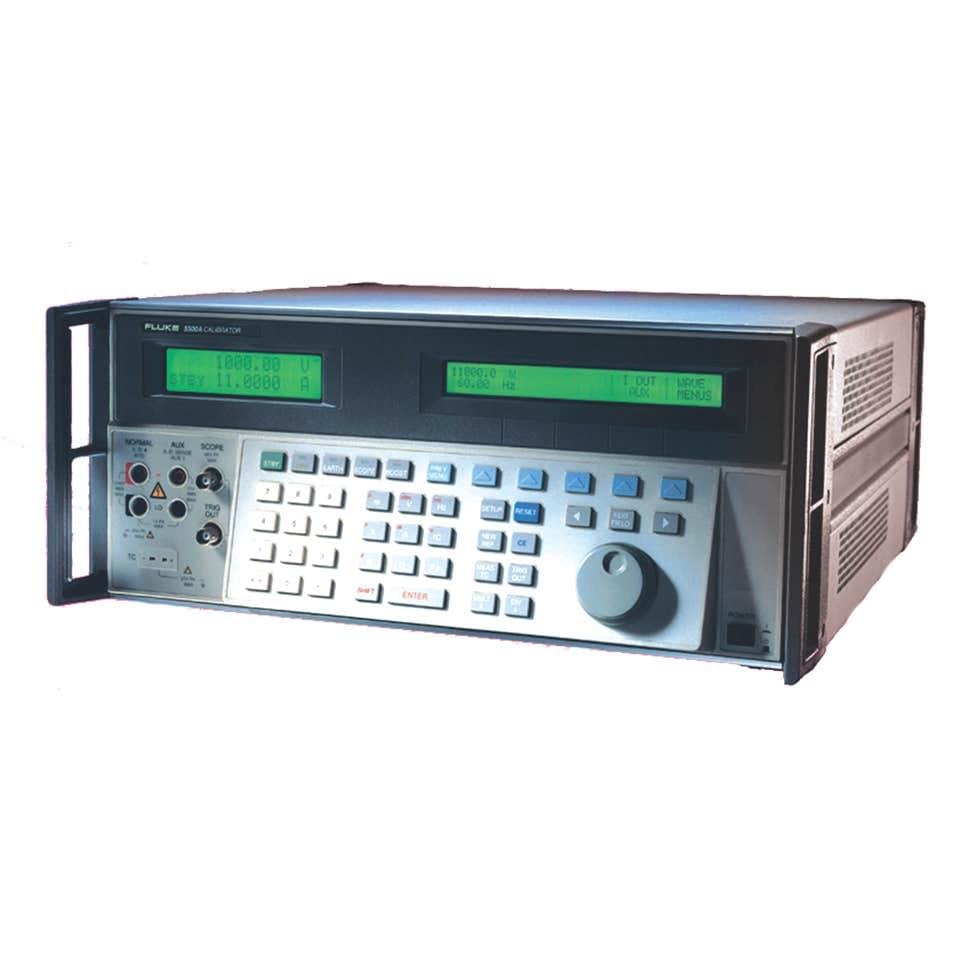

Fluke 5500A Multi Product Calibrator

SKU: FLU,5500A

Calibrator sources direct voltage & current, alternating voltage and current, with multiple waveforms and harmonics, 2 simultaneous voltage outputs or voltage & current. Simulates power with phase control, resistance, capacitance, thermocouples and RTDs. Selectable ranges include the following outputs VDC from 0~1.02kV, VAC from 1mV~1.02kV with output from 10Hz~500kHz. AC current from 0.01µA~11A with output from 10Hz~10kHz. DC current from 0~11A. Resistance values from short circuit to 330Mohm. Capacitance values from 330pF~1,100µF. Temperature t/c B, C, E, J, K, L, N, R, S, T, U, RTD Pt385 100ohm, Pt3926 100ohm, Pt3916 100ohm, Pt385 200ohm, Pt385 500ohm, Pt385 1kohm, Ni120 120ohm & Cu427 10ohm.

Need this equipment?

Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.

Call us: +61 2 9564 8623
