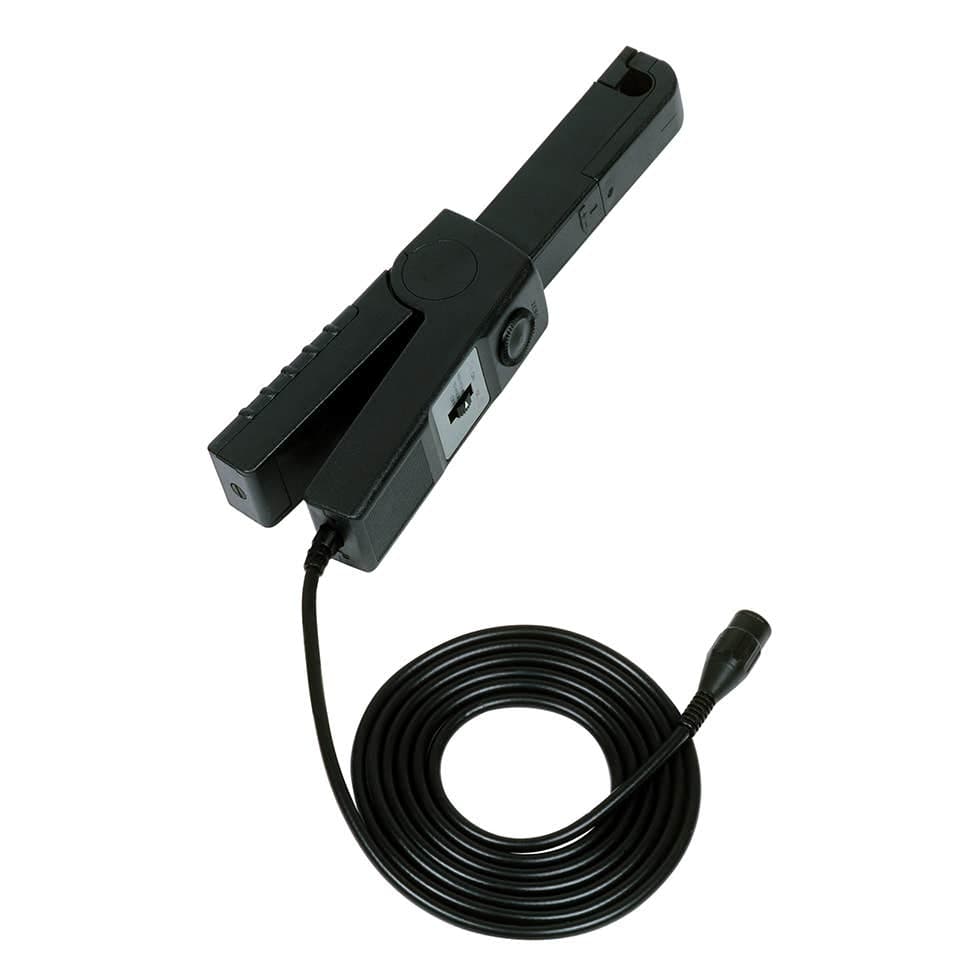

Fluke 80i-110s AC/DC Current Probe

SKU: FLU,I-PROBE

Current clamp for oscilloscopes which uses a Hall effect cell for the measurement of DC or AC current. Measures currents from 0.05 to 100A peak. A thumbwheel can be used to reset zero for adaption to the measurement environment. The clamp can be used with any measurement instrument which has a BNC input and an impedance of 1MOhm, <100pF. Maximum conductor diameter, 11.8mm

Need this equipment?

Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.
