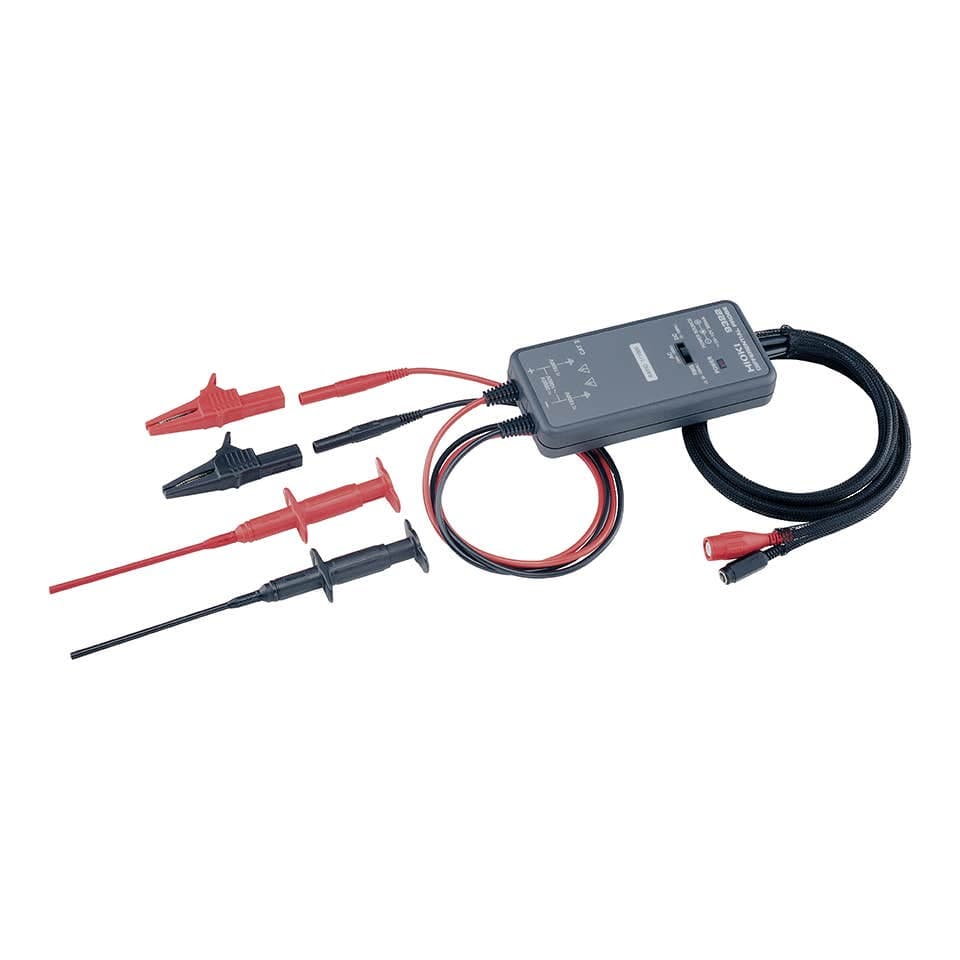

Hioki Kit of Three 9322 High Voltage True rms Interface

SKU: HIO,9322-KIT

Used with many memory recorders, eg. Hioki 8835. Operating modes 3. DC mode for waveform monitor output DC to 3MHz, AC mode detection of power surge noise 1kHz~10MHz. Rectified true RMS output of DC & ac voltages. 40Hz~100kHz response speed 200ms or less. Max voltage DC 2kV, ac 1kV CATII, AC/DC 600V CATIII, balanced differential input 1/1,000 divider.

Need this equipment?

Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.

Call us: +61 2 9564 8623
