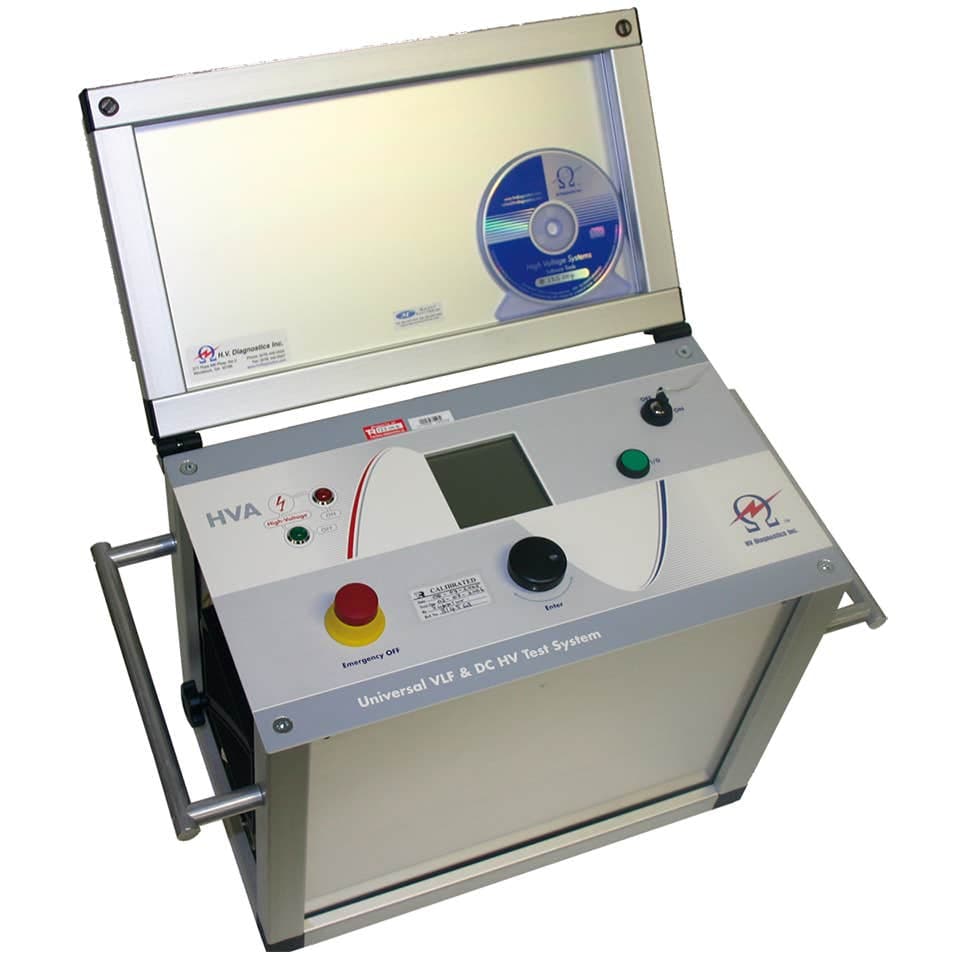

HV Diagnostics HVA30 30kV VLF/DC Test Set
SKU: HVD,HVA30-DC/VLF
VLF and DC test capabilities combined in one unit (20 kg). Suitable for testing cables (XLPE, PE, EPR, PILC etc), capacitors, switchgear, transformers, machines (IEEE 433), insulators and bushings. VLF (0.1Hz to 0.02Hz), DC (+/-), cable fault conditioning (burning) and sheath/jacket testing modes all included. Fully automatic or manual cable test sequences complying with International Standards/Guides such as IEEE 400.2, VDE 0276 and CENELEC. True symmetrical sinusoidal, load independent, output waveform across the full load range. Real-time display of actual output wave form. Easy to use, ergonomic, menu guided, large backlit user interface. Large output load capability (up to 5uF). Automatic and integrated load capacitance measurement with optimum frequency selection. Storage of test results for later retrieval or download to a PC/Laptop.
Need this equipment?
Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.
Call us: +61 2 9564 8623
Developed by OEM H V Diagnostics, the HVA30 automatically performs VLF withstand tests and optional DC or step-voltage sequences, while continuously monitoring voltage, current and load capacitance. A single-piece, oil-free design keeps the unit lightweight and field-portable, and its intuitive keypad interface with back-lit display provides straightforward operation for technicians in challenging on-site conditions.
Key Features:
30 kV RMS VLF Output: Performs sinusoidal withstand tests up to 30 kV RMS (≈42 kV peak), suitable for cables rated to 25 kV class and below.
Dual VLF & DC Modes: Switch between 0.1 Hz VLF, square-wave or ±30 kV DC for versatile insulation assessment and fault-diagnosis routines.
Automatic Test Sequences: Pre-programmed routines simplify compliance with IEC 60502-2 and IEEE 400.2 guidelines, ensuring consistent, repeatable results.
Integrated Measurement & Data Storage: On-board metering logs voltage, current and capacitance values for post-test reporting and analysis.
Comprehensive Safety Systems: Built-in earth monitoring, rapid discharge and overload protection safeguard users and equipment.
Portable, Single-Unit Design: Solid-state construction eliminates external oil resistors and reduces overall footprint for easy transport between sites.
Why Choose the HV Diagnostics HVA30 30 kV VLF/DC Test Set?
Delivers reliable, standards-compliant VLF and DC testing in a single portable package.
Offers automatic sequencing and digital reporting to streamline field workflows.
Reduces downtime by enabling rapid, on-site verification of cable insulation integrity.
TechRentals provides the HV Diagnostics HVA30 30 kV VLF/DC Test Set on flexible rental terms, giving you access to premium equipment without the upfront cost of ownership. Backed by over 50 years of industry expertise, we help ensure reliable cable insulation testing and commissioning.
Enquire today to rent the HV Diagnostics HVA30 30 kV VLF/DC Test Set and streamline your cable insulation testing and commissioning tasks.
