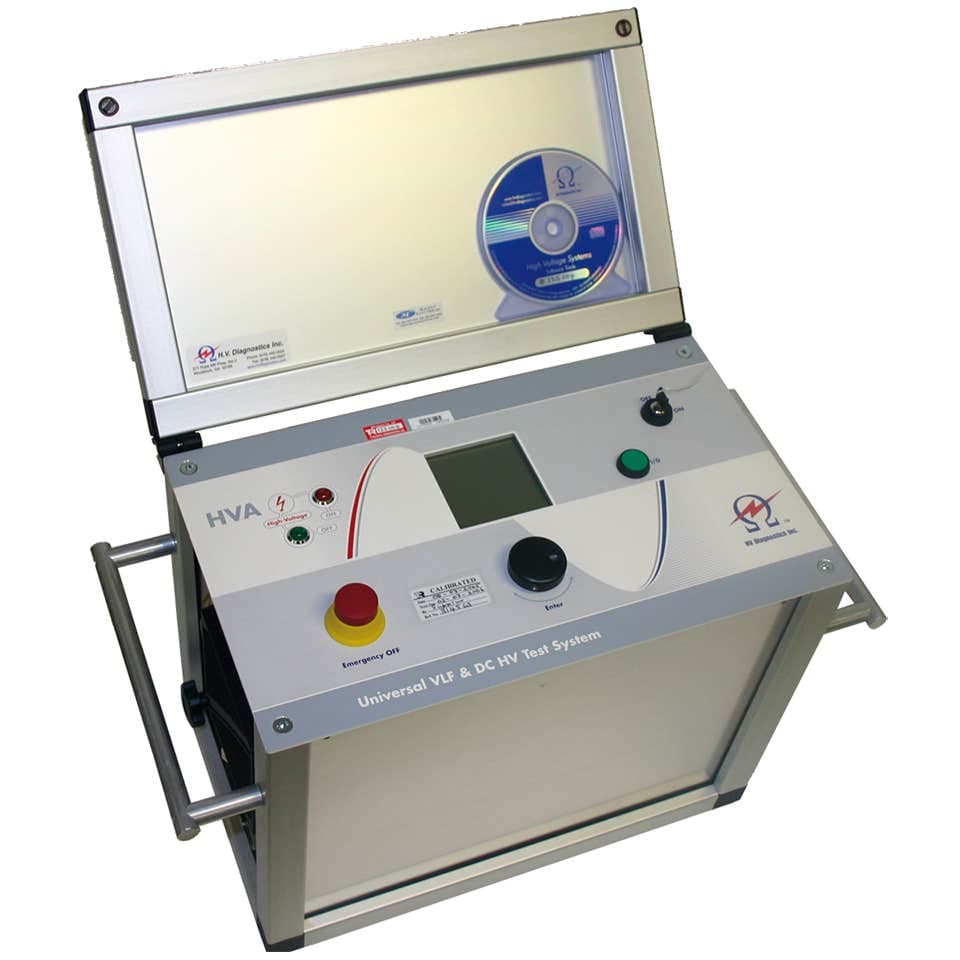

HV Diagnostics HVA60 60kV VLF/DC Test Set
SKU: HVD,HVA60-DC/VLF
VLF and DC test capabilities combined in one unit (60 kg). Suitable for testing cables, capacitors, switchgear, transformers, machines, insulators and bushings. VLF (0.1Hz to 0.02Hz), DC (+/-), cable fault conditioning (burning) and sheath/jacket testing modes all included. Fully automatic or manual cable test sequences. True symmetrical sinusoidal, load independent, output waveform across the full load range. Real-time display of actual output wave form. Large output load capability (up to 5uF). Automatic and integrated load capacitance measurement with optimum frequency selection. Storage of test results for later retrieval or download to a PC/Laptop. For a more comprehensive understanding of insulation condition perform tan delta testing at the same time with optional accessory HVD,HVA TD60.
Need this equipment?
Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.
Call us: +61 2 9564 8623
Delivering up to 60 kV peak (42 kV rms) true-sinusoidal VLF output or ±60 kV DC, the HVA60 can test cables rated to 35 kV while handling loads to 1 µF at 0.1 Hz. Automatic frequency adjustment, precision leakage-current metering and onboard data logging combine to give technicians fast, repeatable results in the field—all in a single, rugged enclosure ready for rent or hire.
Key Features:
60 kV peak VLF & ±60 kV DC output: Covers withstand tests on cables up to 35 kV rating without separate equipment.
True 0.1 Hz sinusoidal waveform: Ensures accurate, standards-compliant stress without excessive power consumption.
Automatic load-based frequency shift: Maintains full voltage on larger capacitances, extending field versatility.
Integrated leakage-current & insulation-resistance measurement: Gives immediate pass/fail indication and quantitative diagnostics.
Onboard test sequencing & data storage: Simplifies set-up and delivers traceable digital reports for quality assurance.
Rugged, single-piece construction: Field-ready design with high-visibility controls speeds deployment on site.
Why Choose the HV Diagnostics HVA60 60 kV VLF/DC Test Set?
Accurate, standards-compliant assessment of medium-voltage insulation.
Combines AC and DC testing modes for maximum application flexibility.
Automated operation and reporting reduce testing time and human error.
TechRentals provides the HV Diagnostics HVA60 60 kV VLF/DC Test Set on flexible rental terms, giving you access to premium equipment without the upfront cost of ownership. Backed by over 50 years of industry expertise, we help ensure safe and reliable high-voltage cable testing.
Enquire today to rent the HV Diagnostics HVA60 60 kV VLF/DC Test Set and streamline your VLF and DC high-voltage cable testing.
