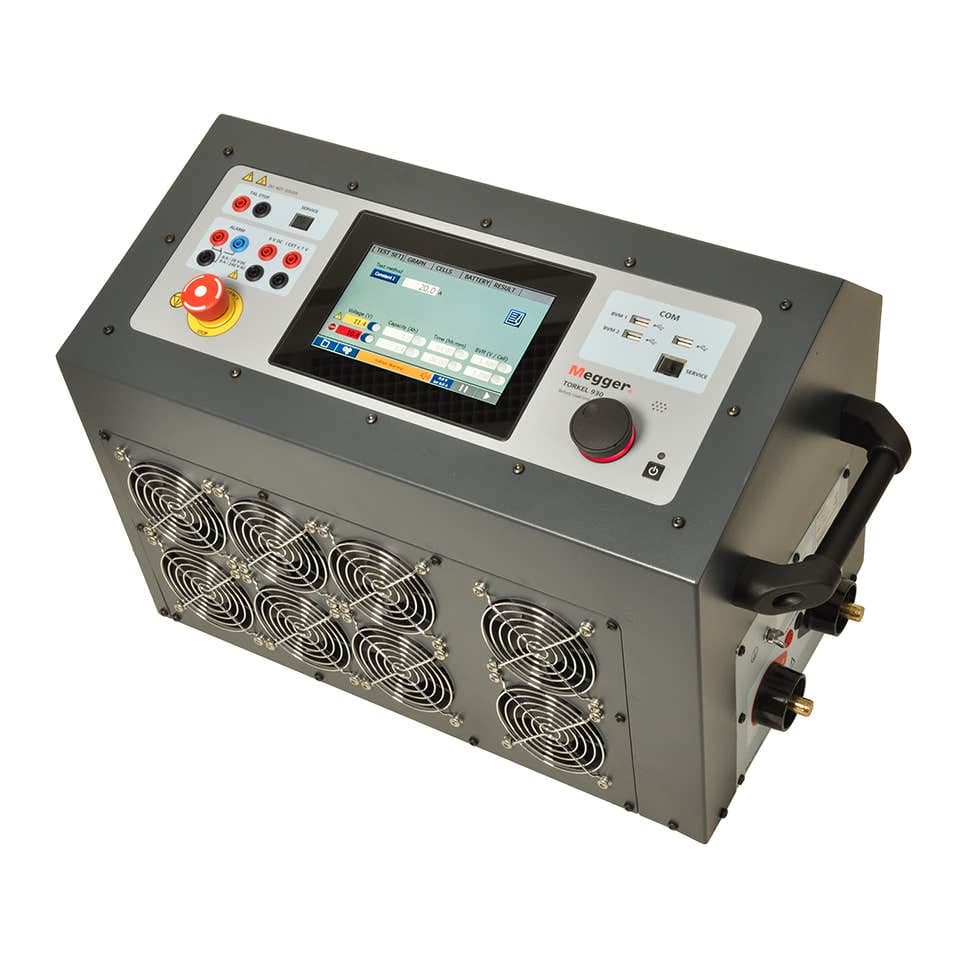

Megger Torkel 950 battery discharge tester

SKU: MEG,TOR950

Battery discharge load unit. Works with 7.5V to 500V battery systems and can discharge at up to 220A (15kW maximum power). It can be programmed for constant current, constant power, constant resistance or user defined load profiles. The kit includes a 200ADC current clamp allows on-load testing. Tests are controlled by a built in PC and results can be copied to a USB memory stick.

Need this equipment?

Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.

Call us: +61 2 9564 8623

The Megger Torkel 950 Battery Discharge Tester delivers controlled, precise and fully-instrumented load testing for stationary batteries from 12 V up to 300 V, making it an indispensable tool for utilities, data centres, UPS maintenance teams and power-generation professionals who need to verify battery capacity under real-world conditions.

Designed by Megger to comply with IEEE Std 450/1188 and IEC 60896 guidelines, the Torkel 950 applies a constant current load (up to 220 A standalone) while continuously recording battery voltage, current and elapsed amp-hours. Automatic stop criteria based on voltage, time or capacity protect the battery string, and captured data can be reviewed on the colour display or exported via USB for detailed analysis.

Key Features:

Wide Voltage Range: Tests battery systems from 12 V to 300 V, covering lead-acid in telecom, UPS and substation environments.
High Constant Current: Delivers up to 220 A without external load units, ensuring reliable capacity verification for large battery banks.
Automatic Stop Modes: User-defined limits for end-voltage, test time or discharged amp-hours safeguard batteries and streamline compliance with maintenance standards.
Integrated Data Logging: Stores detailed voltage and current profiles internally and outputs results via USB for post-test reporting.
Expandable Load Capability: Compatible with Megger TXL extra load units to increase discharge current when higher loads are required (no firmware changes needed).
Portable Rugged Design: Compact enclosure with robust handles and cooling system; suitable for field or plant-room use.

Why Choose the Megger Torkel 950 Battery Discharge Tester?

Delivers verifiable results aligned with international battery maintenance standards.
Adaptable for a broad range of voltages, chemistries and discharge profiles.
Lightweight yet powerful platform that simplifies on-site capacity testing workflows.

TechRentals provides the Megger Torkel 950 Battery Discharge Tester on flexible rental terms, giving you access to premium equipment without the upfront cost of ownership. Backed by over 50 years of industry expertise, we help ensure accurate and efficient battery discharge testing.

Enquire today to rent the Megger Torkel 950 Battery Discharge Tester and streamline your battery discharge testing and capacity verification tasks.
