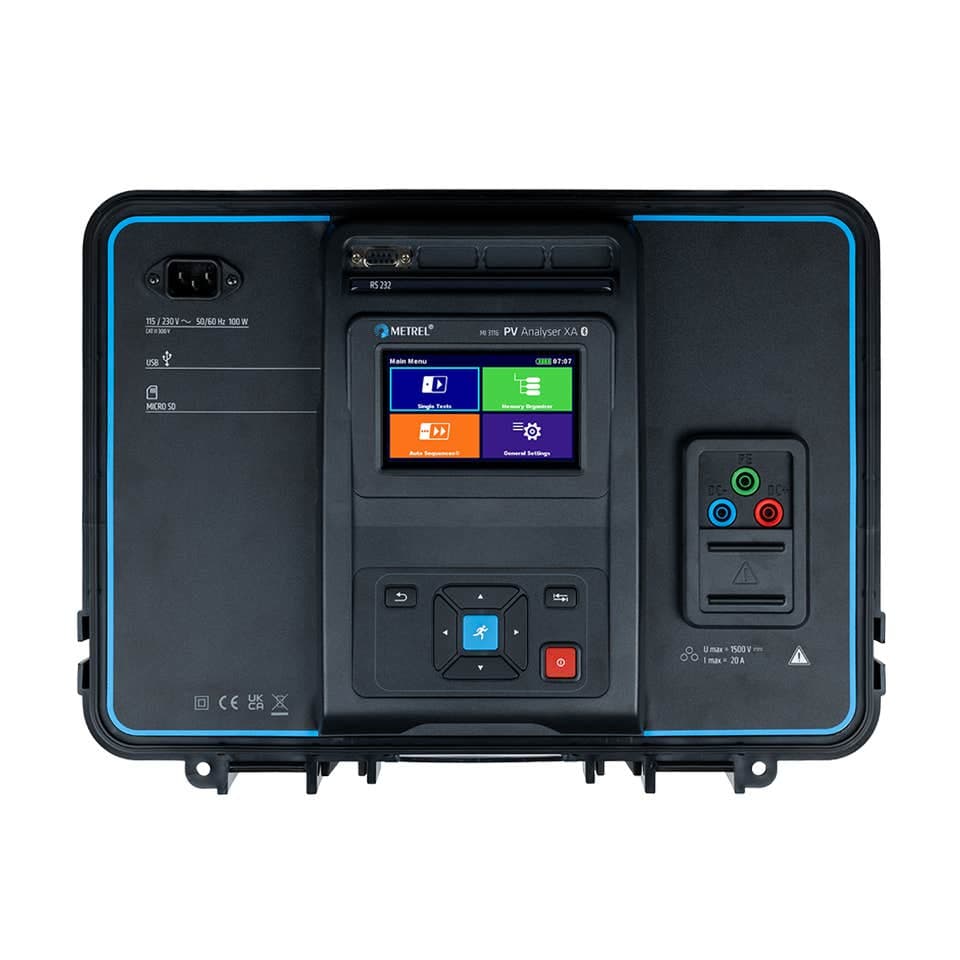

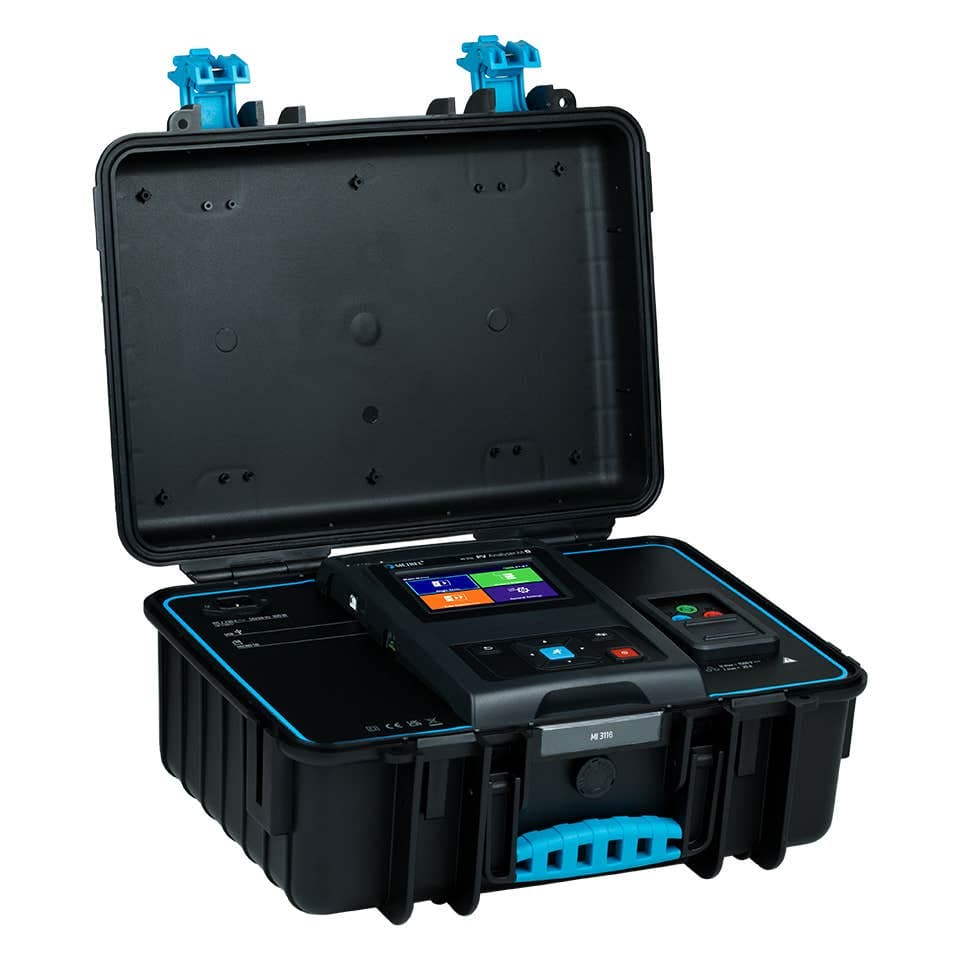

Metrel MI 3116 Solar PV Analyser XA

SKU: MET,MI3116

The Metrel MI 3116 Solar PV Analyser XA is a cutting-edge solution designed for comprehensive testing, commissioning, and troubleshooting of photovoltaic (PV) installations. Ideal for solar professionals, this advanced analyser (1500V/ 40 A) streamlines the process of verifying PV system performance, ensuring safety, and maintaining compliance with industry standards. Whether you need to rent or hire a reliable solar PV analyser for installation, maintenance, or diagnostic tasks, the Metrel MI 3116 delivers precise results and robust functionality. Manufactured by Metrel, a leader in electrical measurement technology, the MI 3116 Solar PV Analyser XA offers a complete suite of tests for both DC and AC sides of PV systems. It measures I-V curves, insulation resistance, earth continuity, and voltage. With intuitive operation, high-resolution display, and advanced data logging, this analyser is engineered for professionals who demand accuracy and efficiency in solar PV system assessment. Its portable design and robust construction make it suitable for both field and laboratory environments, enhancing productivity and reliability in every project. Key Features: Comprehensive PV Testing: Performs I-V curve tracing, insulation resistance, and earth continuity tests for complete PV system analysis. High-Resolution Display: Large, clear screen for easy data interpretation and on-site diagnostics. Advanced Data Logging: Stores test results for later review, reporting, and compliance documentation. Rugged, Portable Design: Built for demanding field conditions with a lightweight, ergonomic form factor. User-Friendly Interface: Intuitive menu navigation and quick setup for efficient workflow and reduced testing time. Why Choose the Metrel MI 3116 Solar PV Analyser XA? Delivers highly accurate and reliable PV system diagnostics. Supports a wide range of solar installation testing requirements. Streamlines workflow with efficient, easy-to-use features. TechRentals provides the Metrel MI 3116 Solar PV Analyser XA on flexible rental terms, giving you access to premium equipment without the upfront cost of ownership. Backed by over 50 years of industry expertise, we help ensure accurate and efficient solar PV system assessments. Enquire today to rent the Metrel MI 3116 Solar PV Analyser XA and streamline your solar PV testing and commissioning tasks. Not sure which equipment to hire? Call our friendly experts today and get the right solution for your project.

Need this equipment?

Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.

Call us: +61 2 9564 8623

The Metrel MI 3116 Solar PV Analyser XA is a dedicated photovoltaic commissioning and maintenance instrument, purpose-built to help professionals verify electrical safety, trace I-V curves and assess overall system performance. Available for rent or hire, it streamlines on-site testing for installers, electricians and renewable-energy consultants.

Combining multiple PV measurement functions into a single handheld platform, the MI 3116 captures key parameters such as open-circuit voltage, short-circuit current, insulation resistance and module/string I-V characteristics. When paired with its wireless reference cell, the instrument automatically converts results to Standard Test Conditions (STC) and calculates performance ratio, enabling fast, data-driven decisions in the field without complex post-processing.

Key Features:

I-V Curve Tracing: Records module and string curves up to 1000 V / 40 A, instantly highlighting mismatch or shading issues.
STC Conversion: Built-in algorithms adjust for actual irradiance and temperature, delivering comparable results under Standard Test Conditions.
Electrical Safety Tests: Measures continuity, insulation resistance, open-circuit voltage and short-circuit current in line with IEC 62446.
On-board Memory & Reporting: Stores thousands of tests and exports data to PC software for detailed analysis and PDF report generation.
Rugged Field Design: Lightweight, battery-powered unit with sunlight-readable display for reliable operation on rooftops and remote sites.

Why Choose the Metrel MI 3116 Solar PV Analyser XA?

Delivers comprehensive electrical and performance diagnostics in a single instrument.
Provides reliable, standards-based results that aid compliance and warranty documentation.
Portable, user-friendly design reduces site time and accelerates project workflows.

TechRentals provides the Metrel MI 3116 Solar PV Analyser XA on flexible rental terms, giving you access to premium equipment without the upfront cost of ownership. Backed by over 50 years of industry expertise, we help ensure accurate solar PV installation testing and commissioning.

Enquire today to rent the Metrel MI 3116 Solar PV Analyser XA and streamline your solar PV performance verification and maintenance tasks.

Not sure which equipment to hire? Call our friendly experts today and get the right solution for your project.
