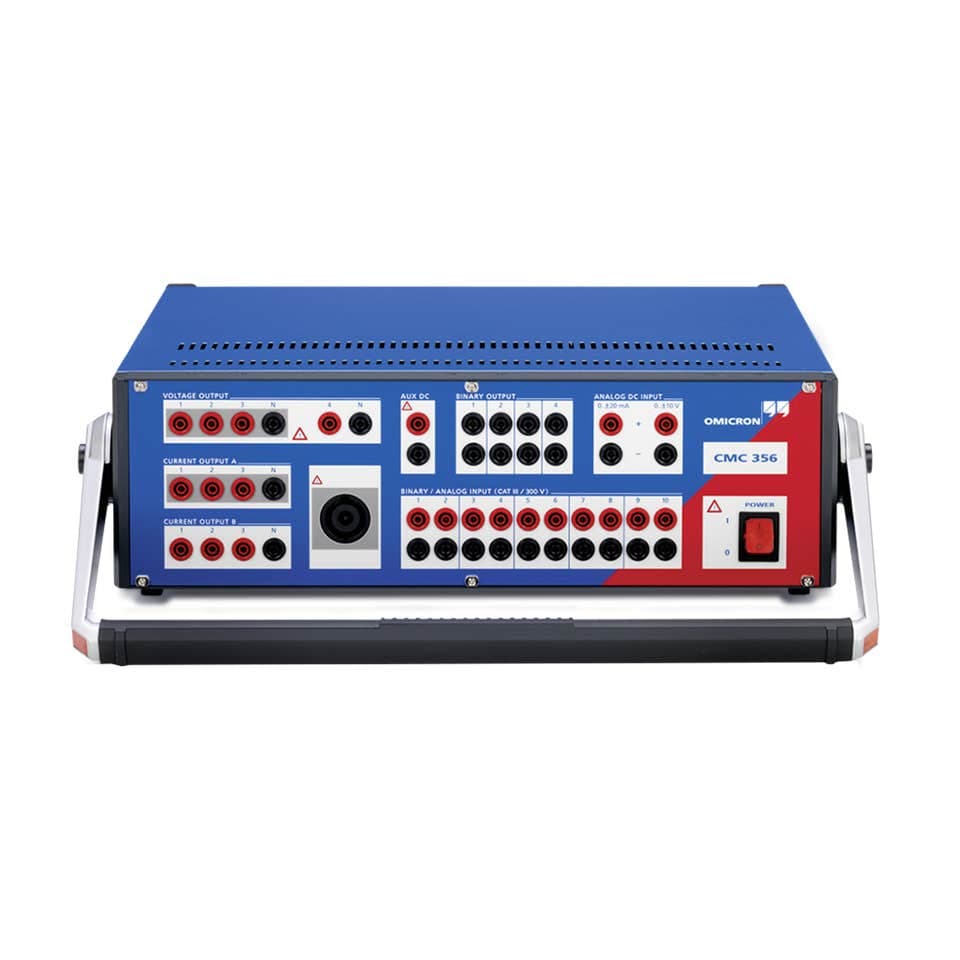

OMICRON CMC 356 Advanced Protection Relay Test Set +61850

SKU: OMI,CMC356_61850

Protection relay test set with six current sources (6 x 32A/430VA, 3 x 64A/860VA or 1 x 128A/1000VA), four voltage outputs (4 x 300V or 1 x 600V), 4 x binary outputs, 10 x multifunctional binary inputs (dry/wet) and Generator Combination Cable for wiring convenience. The six current and four voltage output channels are continuously and independently adjustable in amplitude, phase and frequency. All outputs overload and short-circuit proof. Includes IEC61850 software package (GOOSE, Sampled Values, IEDScout, SVScout). ELT-1 and LLO-2 options not included. Laptop included, preloaded with Test Universe software (Advanced Protection + Transducer) and IEC61850 package. Optional accessories: OMI,CMA156-6PCA OMI,C-PROBE1 OMI,CMGPS

Need this equipment?

Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.

Call us: +61 2 9564 8623

The OMICRON CMC 356 Advanced Protection Relay Test Set +61850 is a versatile, high-precision solution designed to thoroughly test and commission protection relays and IEC 61850 devices across utility, industrial, and renewable power networks.

Built by OMICRON Energy, the CMC 356 delivers multi-phase current and voltage generation, precise timing, and seamless IEC 61850 GOOSE/Sampled Values integration—making it ideal for engineers who need reliable verification of protective schemes, automation systems, and substation communication links. Available exclusively for rent or hire, it enables short-term access to premium functionality without capital expenditure.

Key Features:

Six current & four voltage sources: Perform comprehensive three-phase testing on protection relays and meters in a single setup.
IEC 61850 capabilities: Native support for GOOSE messages and Sampled Values streamlines digital substation commissioning.
High output accuracy: Precision signal generation ensures trustworthy results for differential, distance, and over-current schemes.
Powerful Test Universe software: Intuitive templates and automated test plans reduce setup time and enhance repeatability.
EnerLyzer option: Simultaneous fault recording and power analysis provide in-depth insights during live system checks.
Rugged, field-ready design: Portable enclosure with durable connectors stands up to demanding on-site environments.

Why Choose the OMICRON CMC 356 Advanced Protection Relay Test Set +61850?

Delivers laboratory-grade accuracy for mission-critical protection systems.
Combines conventional and digital (IEC 61850) testing in one compact unit.
Speeds up commissioning and maintenance tasks, minimizing system downtime.

TechRentals provides the OMICRON CMC 356 Advanced Protection Relay Test Set +61850 on flexible rental terms, giving you access to premium equipment without the upfront cost of ownership. Backed by over 50 years of industry expertise, we help ensure accurate and efficient protection relay testing.

Enquire today to rent the OMICRON CMC 356 Advanced Protection Relay Test Set +61850 and streamline your protection relay testing and IEC 61850 commissioning tasks.

Not sure which equipment to hire? Call our friendly experts today and get the right solution for your project.
