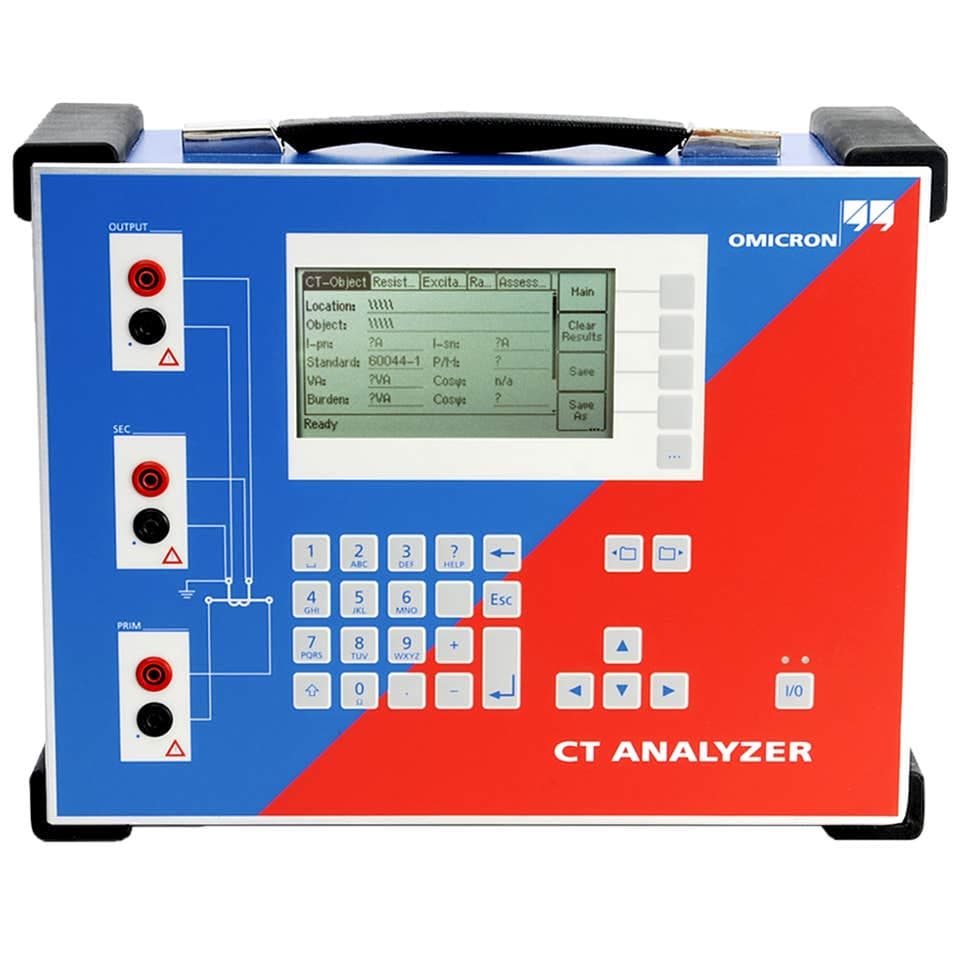

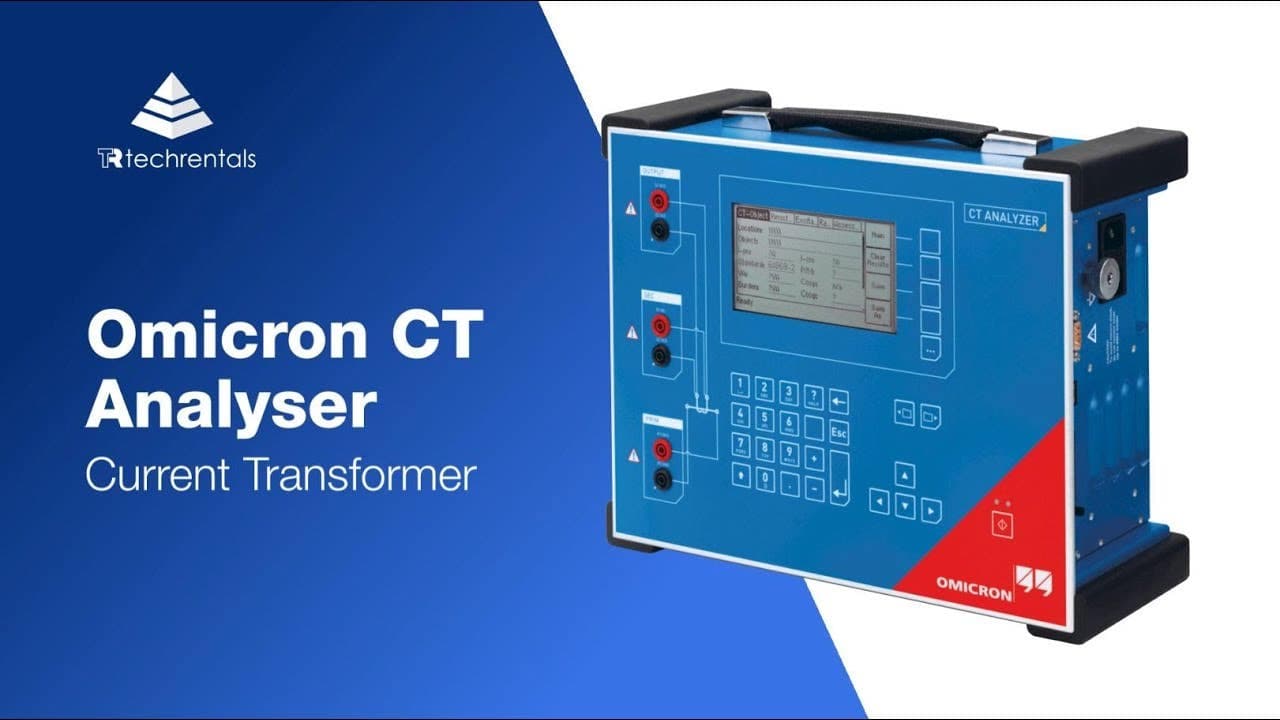

OMICRON CT Analyser Current Transformer
SKU: OMI,CTANALYZER
The Omicron CT Analyser tests protection and metering CTs according to IEEE and IEC standards. It will measure phase-angle, ratio, winding resistance, excitation/saturation, and burden impedance. Results of the assessment are received as a "pass or fail" decision within seconds due to the automated testing process. Features: • Field verification up to the 0.1 accuracy class • Compact and lightweight (< 8 kg) • High noise immunity for on-site testing
Need this equipment?
Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.
Call us: +61 2 9564 8623
The OMICRON CT Analyser Transformer delivers fast, standards-compliant testing and analysis of protection and metering current transformers, making it an indispensable asset for electrical engineers who need to rent or hire a compact, highly accurate CT test set.
Developed by OMICRON Energy, the CT Analyser automatically determines ratio, phase error, burden, knee-point voltage and excitation characteristics, then evaluates accuracy classes against IEC 60044/61869 and IEEE C57.13 criteria in a single test run. Weighing just under 8 kg and featuring intuitive, menu-driven operation, it is equally suited to on-site commissioning, routine maintenance and laboratory verification work. Results are displayed immediately and can be exported for detailed reporting, allowing teams to minimise outage times and document compliance with confidence.
Key Features:
Comprehensive CT analysis: Measures ratio, phase displacement, burden impedance, excitation curve and knee-point voltage in a single automated sequence.
Standards compliance verification: Automatically evaluates protection and metering classes to IEC 60044-1/2, IEC 61869-2/-10 and IEEE C57.13.
Rapid test cycle: Typical test duration of two minutes per CT greatly reduces commissioning and maintenance time.
Portable & rugged design: Lightweight enclosure with integrated handle and protective casing simplifies transport across substations and switch-yards.
User-friendly interface: Large colour display and guided workflows minimise operator error and training requirements.
Integrated reporting software: Stores results internally and exports data to OMICRON’s advanced PC tools for detailed analysis and certification.
Why Choose the OMICRON CT Analyser Transformer?
Delivers laboratory-grade accuracy in a portable field unit.
Automates complex calculations, reducing human error and test time.
Ensures full compliance with international CT performance standards.
TechRentals provides the OMICRON CT Analyser Transformer on flexible rental terms, giving you access to premium equipment without the upfront cost of ownership. Backed by over 50 years of industry expertise, we help ensure fast and reliable current transformer testing.
Enquire today to rent the OMICRON CT Analyser Transformer and streamline your current transformer testing and analysis tasks.
Not sure which equipment to hire? Call our friendly experts today and get the right solution for your project.
