Panametrics PT900E Ultrasonic Liquid Flow Energy Meter

SKU: PAN,PT900E

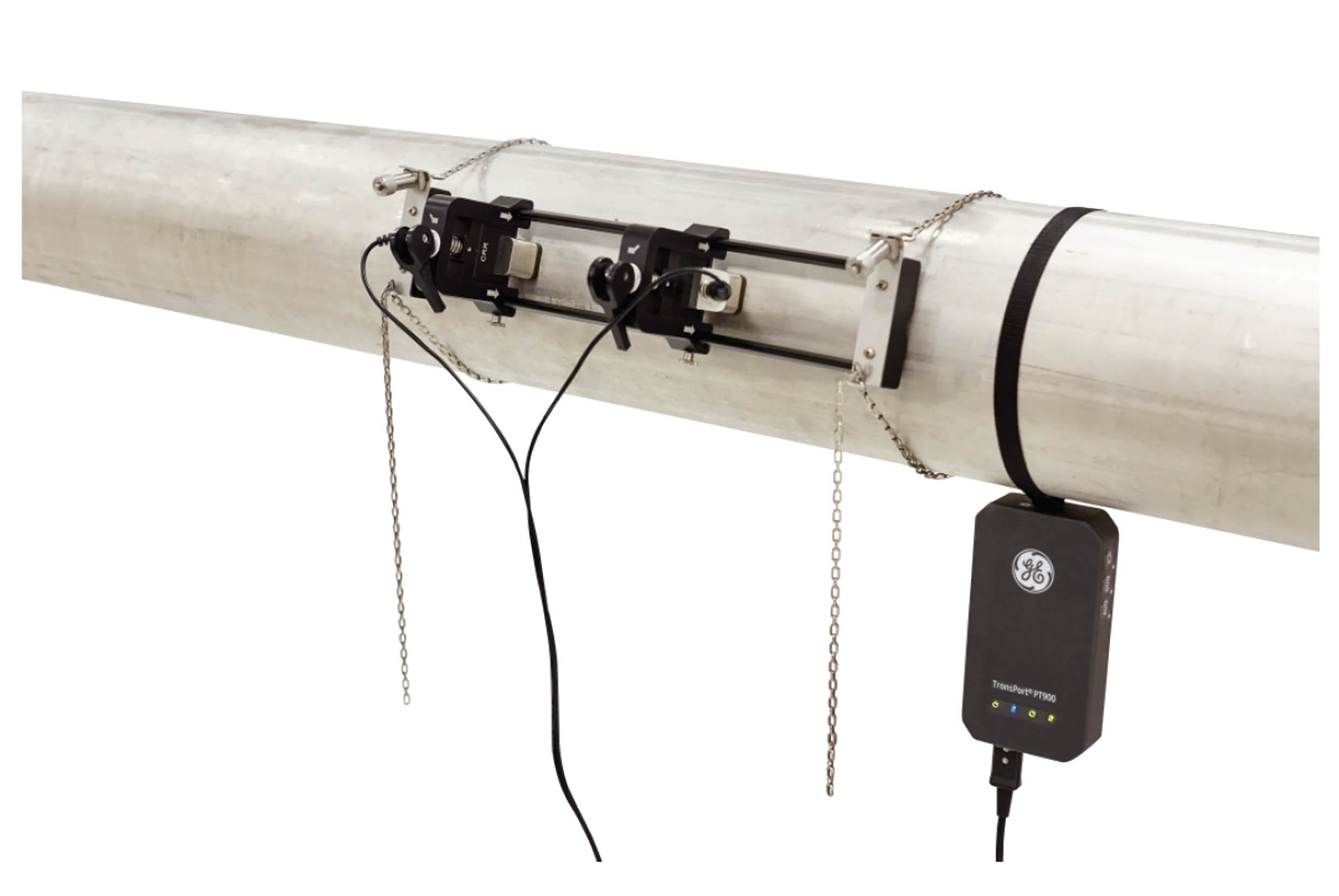

Panametrics Transport PT900E is a NATA accredited portable non-contact liquid flowmeter using transit-time principle. Includes thickness gauge and 2 sets of transducers, one 12.5mm to 50mm the second 50mm to 600mm diameters with temperatures ranges from -40 to 210 deg C and -40 to 150 deg C depending on transducers supplied and clamping fixtures. Flow velocity range 0.03 to 12.2m/s. Accuracy typically 1%. Data logging to internal memory, accessed as external drive when plugged into a PC via USB. Setup and monitoring using Android or iOS device. Rechargeable Li-ion batteries and AC power supply/charger. Typical battery life ~ 14 hours. Supplied with Energy measurement option to calculate energy flow rate and totalized energy using Analogue I/O. RTD temperature transmitter with range -10 to 150 deg C.

Need this equipment?

Add to your quote cart and submit a request. We'll get back to you within 24 hours with pricing and availability.

Call us: +61 2 9564 8623

Panametrics Transport PT900E is a portable non-contact liquid flowmeter using transit-time principle. Includes thickness gauge and 2 sets of transducers, one 12.5mm to 50mm the second 50mm to 600mm diameters with temperatures ranges from -40 to 210 deg C and -40 to 150 deg C depending on transducers supplied and clamping fixtures. Flow velocity range 0.03 to 12.2m/s. Accuracy typically 1%. Data logging to internal memory, accessed as external drive when plugged into a PC via USB. Setup and monitoring using Android or iOS device. Rechargeable Li-ion batteries and AC power supply/charger. Supplied with Energy measurement option to calculate energy flow rate and totalized energy using Analogue I/O. RTD temperature transmitter with range -10 to 150 deg C.
